VWIC3-2MFT-T1/E1
Model: VWIC3-2MFT-T1/E1 Cisco Voice/WAN Card
Details: Cisco Voice/WAN Card VWIC3-2MFT-T1/E1
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
VWIC3-2MFT-T1/E1 Overview

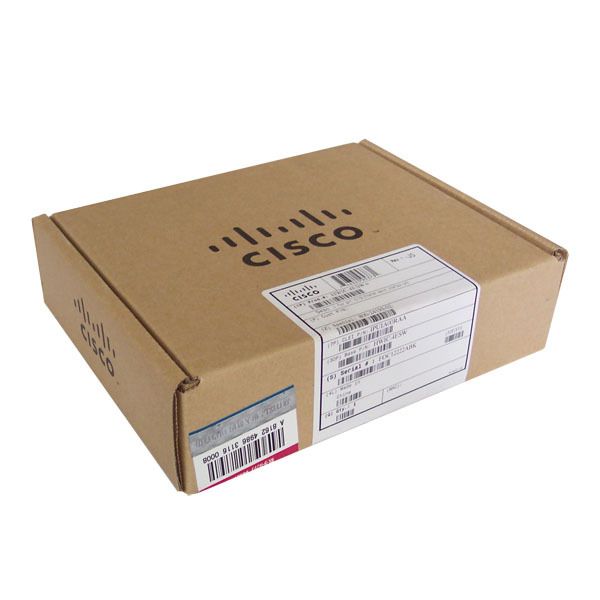

Quick Specs Figure 1 shows the appearance of VWIC3-2MFT-T1/E1.
Table 1 shows the Quick Specs.
| Manufacturer | Cisco |
| Part Number | VWIC3-2MFT-T1/E1 |
| Device Type | Interface module |
| Form factor | 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card |
| Number of Ports | 2 |
| T1 Support | Yes |
| E1 Support | Yes |
| Unstructured E1 (G.703) Support | No |
| Data Support WIC Mode | Yes |
| Voice Support VIC* | Yes |
| Drop-and-Insert Multiplexing | Yes |
| Serial Data (channel-group*) | 2 total2 per port |
| Voice CAS (ds0-group**) | 48 total (T1)62 total (E1)1 per timeslot |
| PRI (pri-group***) | 2 total1 per port |
| Drop & Insert (tdm-group****) | 48 total (T1)62 total (E1)1 per timeslot |
| Telnet or Console | Remote and local configuration, monitoring, and troubleshooting from Cisco IOS Software CLI |
| Simple Network Management Protocol (SNMP) | • Router and DSU/CSU managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user• Standard MIB (MIB II)• Cisco Integrated DSU/CSU MIB• RFC 1406 T1 MIB, Including Alarm Detection and Reporting |
| SNMP Traps | Generated in response to alarms |
