-5%
W0PSA5000
Model: W0PSA5000 Huawei Switch Power Module
Details: 500W AC Power Module(gray)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
W0PSA5000 Overview

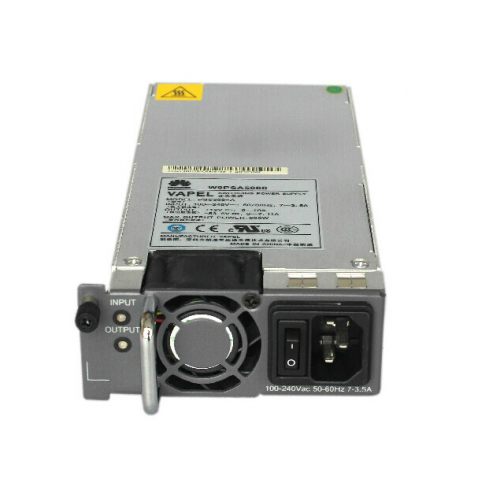

Quick Specs Figure 1 shows the appearance of W0PSA5000.
Table 1 shows the Quick Specs.
| Power module type | AC |
| PoE | Supported |
| Rated input voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current | 7 A to 3.5 A |
| Maximum output current | +12 V: 10 A-53.5 V: 7.11 A |
| Rated output voltage | +12 V-53.5 V |
| Maximum output power | PoE power: 380 WTotal power: 500 W |
| Hot swap | Supported |
| Dimensions (W x D x H) | 100 mm x 205 mm x 40 mm |
