WIC-1DSU-T1-V2
Model: WIC-1DSU-T1-V2 Router WAN Interface Card
Details: Updated 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card
Condition: New Factory SealedUsed
Warranty: 3 Years Warranty.
Description
WIC-1DSU-T1-V2 Overview

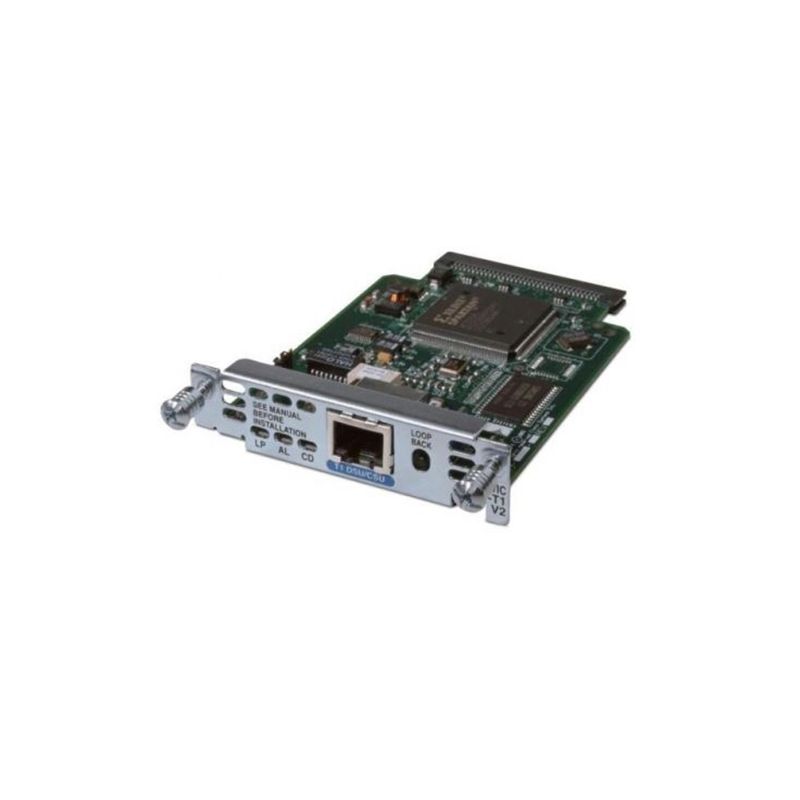

Quick Specs Figure 1 shows the appearance of WIC-1DSU-T1-V2.
Table 1 shows the Quick Specs.
| Product Name | Updated 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card |
| Product Model | WIC-1DSU-T1-V2 |
| Brand | Cisco |
| Interface Type | T1/Fractional T1 |
| Connectivity Technology | Wired |
| Ports | 1 x Network – T1/Fractional T1 – RJ-48 |
| Compatibility | Cisco Integrated Services Routers: 1700, 1800, 2600, 2800, 3700, 3800 series |
| Transmission Speed | 1.544 Mbps |
| Data Link Protocol | T1 |
| Line Rate | T1/Fractional T1 |
| Line Coding Format | AMI, B8ZS |
| Framing Format | ANSI T1.403, D4, ESF |
| Diagnostic Features | Loopback, CSU/DSU |
| Power | Powered through router |
| Configuration Features | Integrated CSU/DSU |
| Digital Signaling Protocol | HDLC, Frame Relay, PPP |
| Management | SNMP, Telnet |
| Compliance Standards | IEEE 802.1Q |
| Environmental Parameters | Min Operating Temperature: 32��F, Max Operating Temperature: 104��F |
| Dimensions | Width: 3.1 in, Depth: 4.8 in, Height: 0.8 in |
