WS-C2960+24TC-S Original price was: $472.00.Current price is: $448.40.
Back to products
WS-C2960C-8TC-L Original price was: $491.00.Current price is: $466.45.

WS-C2960+24PC-L

Original price was: $1,424.00.Current price is: $1,352.80.

Model: WS-C2960+24PC-L Catalyst 2960 Plus Switch
Details: Catalyst 2960 Plus 24 Port 10/100 PoE + 2 T/SFP LAN Base
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: WS-C2960+24PC-L Categories: , ,
Description

WS-C2960+24PC-L Overview

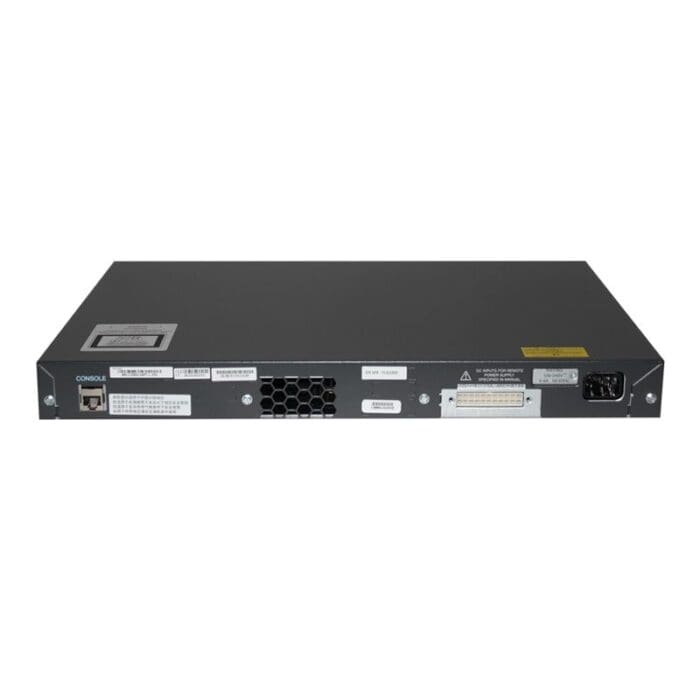

Quick Specs Figure 1 shows the appearance of WS-C2960+24PC-L.

Table 1 shows the Quick Specs.

10/100 Ethernet Interfaces 24
Uplink Interfaces 2 (SFP or 1000BASE-T)
Cisco IOS Software Feature Set LAN Base
Available PoE Power 370W (24 ports up to 15.4W)
Flash memory 64 MB
DRAM 128 MB
Forwarding bandwidth 16 Gbps
Maximum active VLANs 255
VLAN IDs available 4K
Maximum transmission unit (MTU) – L3 packet 9000 bytes
Jumbo frame – Ethernet frame 9018 bytes
Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second 6.5
Dimensions (H x W x D) 1.73 x 17.70 x 13.07 in (4.4 x 45.0 x 33.2 cm)
Weight 12 lb (5.4 Kg)
Package Weight 20.26 lb (9.19 Kg)
Operating temperature up to 5000 ft (1500 m) 23º to 113ºF(-5º to 45ºC)
Operating temperature up to 10,000 ft (3000 m) 23º to 104ºF(-5º to 40ºC)
Short-term exception at sea level* 23º to 131ºF(-5º to 55ºC)
Short-term exception up to 5000 feet (1500 m)* 23º to 122ºF(-5º to 50ºC)
Short-term exception up to 10,000 feet (3000 m)* 23º to 113ºF(-5º to 45ºC)
Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF(-5º to 40ºC)
Storage temperature up to 15,000 feet (4573 m) 23º to 158ºF(-25º to 70ºC)
Operating altitude Up to 10,000 Feet(Up to 3,000 Meters)
Storage altitude Up to 13,000 Feet(Up to 4,000 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
Sound Pressure, dBA Typical, LpAm: 33Maximum, LpAD: 36
Sound Power, dbA Typical, LwA: 43Maximum, LwAD: 46
MTBF in thousands of hours 382
Ethernet Interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs Per-port status: Link integrity, disabled, activity, speed, and full duplexSystem status, Port Status, PoE, RPS, link duplex, and link speed
Console Cisco Catalyst console cables:CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Power The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.Use the supplied AC power cord to connect the AC power connector to an AC power outlet.The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle.
Management BRIDGE-MIBCISCO-CABLE-DIAG-MIBCISCO-CDP-MIBCISCO-CLUSTER-MIBCISCO-CONFIG-COPY-MIBCISCO-CONFIG-MAN-MIBCISCO-DHCP-SNOOPING-MIBCISCO-ENTITY-VENDORTYPE-OID-MIBCISCO-ENVMON-MIBCISCO-ERR-DISABLE-MIBCISCO-FLASH-MIBCISCO-FTP-CLIENT-MIBCISCO-IGMP-FILTER-MIBCISCO-IMAGE-MIBCISCO-IP-STAT-MIBCISCO-LAG-MIBCISCO-MAC-NOTIFICATION-MIBCISCO-MEMORY-POOL-MIBCISCO-PAGP-MIBCISCO-PING-MIBCISCO-POE-EXTENSIONS-MIBCISCO-PORT-QOS-MIBCISCO-PORT-SECURITY-MIBCISCO-PORT-STORM-CONTROL-MIBCISCO-PRODUCTS-MIBCISCO-PROCESS-MIBCISCO-RTTMON-MIBCISCO-SMI-MIBCISCO-STP-EXTENSIONS-MIBCISCO-SYSLOG-MIBCISCO-TC-MIBCICSO-TCP-MIBCISCO-UDLDP-MIBCISCO-VLAN-IFTABLERELATIONSHIP-MIBCISCO-VLAN-MEMBERSHIP-MIBCISCO-VTP-MIBENTITY-MIBETHERLIKE-MIBIEEE8021-PAE-MIBIEEE8023-LAG-MIBIF-MIBINET-ADDRESS-MIBOLD-CISCO-CHASSIS-MIBOLD-CISCO-FLASH-MIBOLD-CISCO-INTERFACES-MIBOLD-CISCO-IP-MIBOLD-CISCO-SYS-MIBOLD-CISCO-TCP-MIBOLD-CISCO-TS-MIBRFC1213-MIBRMON-MIBRMON2-MIBSNMP-FRAMEWORK-MIBSNMP-MPD-MIBSNMP-NOTIFICATION-MIBSNMP-TARGET-MIBSNMPv2-MIBTCP-MIBUDP-MIBePM MIB
Standards IEEE 802.1D Spanning Tree ProtocolIEEE 802.1p CoS PrioritizationIEEE 802.1Q VLANIEEE 802.1sIEEE 802.1wIEEE 802.1XIEEE 802.1ab (LLDP)IEEE 802.3adIEEE 802.3afIEEE 802.3ah (100BASE-X single/multimode fiber only)IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T portsIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TXIEEE 802.3ab 1000BASE-TIEEE 802.3z 1000BASE-XRMON I and II standardsSNMP v1, v2c, and v3
RFC compliance RFC 768 – UDPRFC 783 – TFTPRFC 791 – IPRFC 792 – ICMPRFC 793 – TCPRFC 826 – ARPRFC 854 – TelnetRFC 951 – Bootstrap Protocol (BOOTP)RFC 959 – FTPRFC 1112 – IP Multicast and IGMPRFC 1157 – SNMP v1RFC 1166 – IP AddressesRFC 1256 – Internet Control Message Protocol (ICMP) Router DiscoveryRFC 1305 – NTPRFC 1492 – TACACS+RFC 1493 – Bridge MIBRFC 1542 – BOOTP extensionsRFC 1643 – Ethernet Interface MIBRFC 1757 – RMONRFC 1901 – SNMP v2CRFC 1902-1907 – SNMP v2RFC 1981 – Path MTU Discovery for IPv6FRC 2068 – HTTPRFC 2131 – DHCPRFC 2138 – RADIUSRFC 2233 – IF MIB v3RFC 2373 – IPv6 Aggregatable AddrsRFC 2460 – IPv6RFC 2461 – IPv6 Neighbor DiscoveryRFC 2462 – IPv6 AutoconfigurationRFC 2463 – ICMP IPv6RFC 2474 – Differentiated Services (DiffServ) PrecedenceRFC 2597 – Assured ForwardingRFC 2598 – Expedited ForwardingRFC 2571 – SNMP ManagementRFC 3046 – DHCP Relay Agent Information OptionRFC 3376 – IGMP v3RFC 3580 – 802.1X RADIUS
Voltage (Autoranging) 100 to 240 VAC
Current (Amperes) 4.0 – 2.0
Frequency 50 to 60Hz
Power Rating (kVA) 0.43
DC Input Voltages (RPS Input) 2A at 12V (7A at -52V)
Power Consumption 0% traffic: 35.410% traffic: 35.3100% traffic: 35.6ATIS weighted average: 35.3
Regulatory Compliance Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC
Safety UL 60950-1 Second EditionCAN/CSA-C22.2 No. 60950-1 Second EditionEN 60950-1 Second EditionIEC 60950-1 Second EditionAS/NZS 60950-1
EMC – Emissions 47CFR Part 15 (CFR 47) Class AAS/NZS CISPR22 Class ACISPR22 Class AEN55022 Class AICES003 Class AVCCI Class AEN61000-3-2EN61000-3-3KN22 Class ACNS13438 Class A
EMC – Immunity EN55024CISPR24EN300386KN24
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
