WS-C2960L-48PQ-LL
Model: WS-C2960L-48PQ-LL – Cisco Catalyst 2960L Switch
Details: Catalyst 2960L 48 port GigE PoE+. 4x10G SFP+. Lan Lite
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C2960L-48PQ-LL Overview

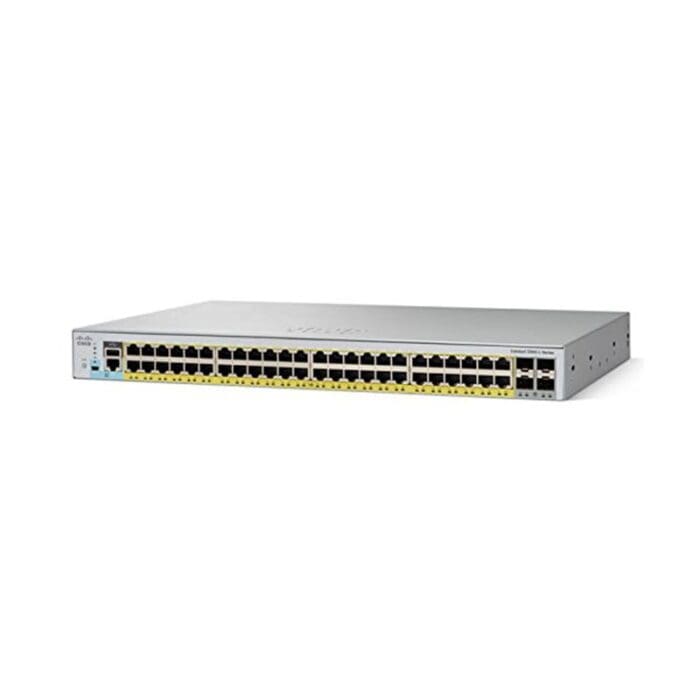

Quick Specs Figure 1 shows the appearance of WS-C2960L-48PQ-LL.
Table 1 shows the Quick Specs.
| 10/100/1000 Ethernet Ports | 48 |
| Uplink Interfaces | 4 SFP |
| Available PoE Power | 370W |
| Fanless | N |
| Dimensions (H x D x W) | 1.73 x 11.5 x 17.5 in. (4.4 x 29.2 x 44.5 cm) |
| Net Weight | 9.81 lb (4.54 kg) |
| RJ45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| CPU | ARMv7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 88 Gbps |
| Switching bandwidth | 176Gbps |
| Forwarding rate (64-byte L3 packets) | 77.38 Mpps |
| Unicast MAC addresses | 8K |
| Maximum active VLANs | 64 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 1 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| MTBF in hours (Data) | 1,370,769 |
| MTBF in hours (PoE) | 437,970 |
| Up to 5,000 ft | 23ºF to 113ºF (–5ºC to 45ºC) |
| Up to 10,000 ft | 23ºF to 104ºF (–5ºC to 40ºC) |
| Operating altitude | 10,000 ft (3000m) |
| Operating relative humidity | 5% to 90% at 40ºC |
| Storage temperature | –13º to 158ºF (–25º to 70ºC) |
| Storage altitude | Minimum ambient temperature for cold start is 0°C (32°F) |
| Storage relative humidity | 5% to 95% at 65ºC |
| Electrical | PoE |
| Voltage (autoranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.37A to 0.64A |
| Power rating (maximum consumption) | 0.48 kVA |
| Power consumption (watts)0% traffic10% traffic100% trafficWeighted average | 68.481.681.977.3 |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
| EMC: emissions | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| EMC: immunity | EN55024, CISPR24, EN300386, KN24 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | USGv6 and IPv6 Ready Logo |
| Ethernet interfaces | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling |
| Indicator LEDs | Per-port status: link integrity, disabled, activity, speed, and full duplex |
| Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 |
| Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
