WS-C2960X-24TS-LL
Model: WS-C2960X-24TS-LL Catalyst 2960-X Switch
Details: Catalyst 2960-X 24 GigE, 2 x 1G SFP, LAN Lite
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C2960X-24TS-LL Overview

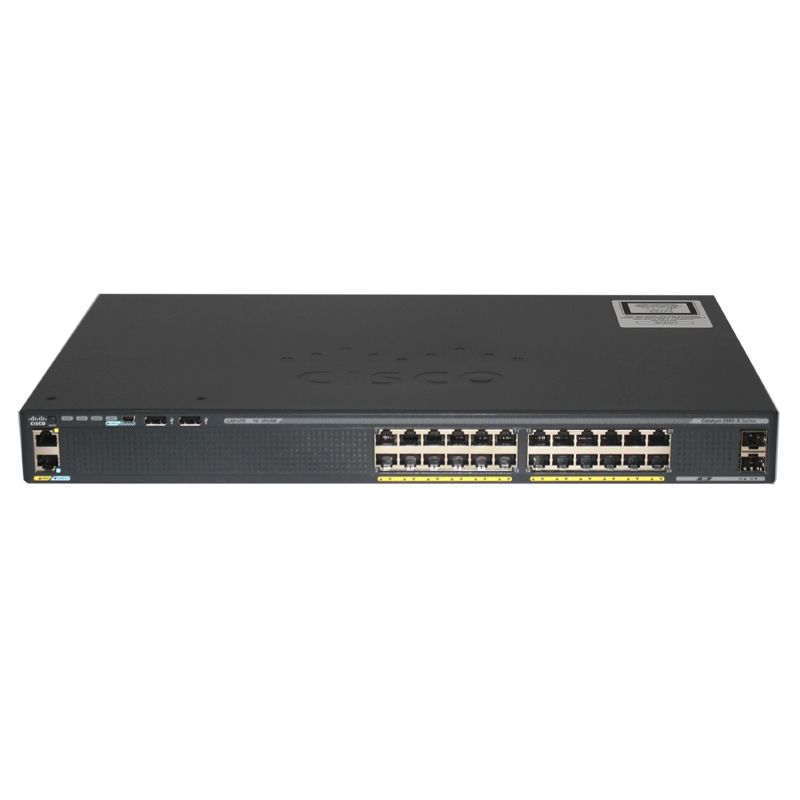

Quick Specs Figure 1 shows the appearance of WS-C2960X-24TS-LL.
Table 1 shows the Quick Specs.
| model info: | WS-2960X-24TS-LL |
| enclosure type | Rack-mountable – 1U |
| Ports | 24 x 10/100/1000 + 2 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | None |
| Forwarding bandwidth(Gbps) | 50Gbps |
| Maximum stacking number | None |
| Stack Bandwidth | None |
| Forwarding Performance | 68.5Mpps |
| Switching bandwidth | 100Gbps |
| Maximum active VLANs | 64 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | None |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.035KVA |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 11 Inches (27.9 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Package Weight | 8.2 Pounds (9.19Kg) |
| Weight | 20.26 Pounds (3.7Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 622,350 |
| Compliant Standards | IEEE 802.1D Spanning Tree Protocol● IEEE 802.1p CoS Prioritization● IEEE 802.1Q VLAN● IEEE 802.1s● IEEE 802.1w● IEEE 802.1X● IEEE 802.1ab (LLDP)● IEEE 802.3ad● IEEE 802.3af and IEEE 802.3at● IEEE 802.3ah (100BASE-X single/multimode fiber only)● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T portsIEEE 802.3 10BASE-T● IEEE 802.3u 100BASE-TX● IEEE 802.3ab 1000BASE-T● IEEE 802.3z 1000BASE-X● RMON I and II standards● SNMP v1, v2c, and v3● IEEE 802.3az● IEEE 802.1ax |
| System software | IOS LAN Lite |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features | ● Jumbo Frames● VLANS●Voice Vlan●VTPv2●CDPv2●LLDP● 802.3ad LACP● PVST/PVST+● 802.1W/802.1S● Port Fast/Uplink Fast● port CoS Trust and Override● Scheduling● Priority Queuing● Configure CoS Priority Queues● Weighted Tail Drop● DSCP transparency |
| Network security | ● SSH, SSL and SCP● RADIUS and TACACS+● SNMPv3 crypto● 802.1x● 802.1x Accounting / MIB● 802.1x w/ port security● 802.1x w/Voice VLAN● 802.1x Guest VLAN● 802.1x VLAN assignment● 802.1x MAC-Auth Bypass● BPDU/Root Guard● Port Security● Private VALN Edge● Storm Control● Block unknown unicast and multicast● IGMP Snooping● IGMP Filter/Throttle |
| Management and Troubleshooting | ● Auto-MDOX●TDR● UDLD● IP SLA Responder● layer 2 / IP Traceroute● SPAN● RSPAN● Express Setup● Device Manager● Cisco Network Assistant● Smartports + Advisor● Troubleshooting Advisor● Drag-and-drop Cisco IOS Upgrade● IP Address DHCP● Autoinstall with saved configuration● Configuration Replace● DHCP Auto Image Upgrade● DHCP Port Based Allocation● Error Disable MIB |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113º |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF |
| Short-term exception at sea level* | 23ºF to 131ºF |
| Short-term exception up to 5000 feet (1500 m)* | 23ºF to 122ºF |
| Short-term exception up to 10,000 feet (3000 m)* | 23ºF to 113ºF |
| Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF |
| Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF |
| Operating altitude | Up to 10,000 feet |
| Storage altitude | Up to 13,000 feet |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
