Model: WS-C3560CX-12PD-S Catalyst Compact switch
Details: Cisco Catalyst 3560-CX 12-port compact Switch Layer 3, POE- 12 x 10/100/1000 Ethernet Ports, 2 SFP+ 10G&2GE uplinks- Data IP Base – Managed
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: WS-C3560CX-12PD-S Categories: , ,
Description

WS-C3560CX-12PD-S Overview

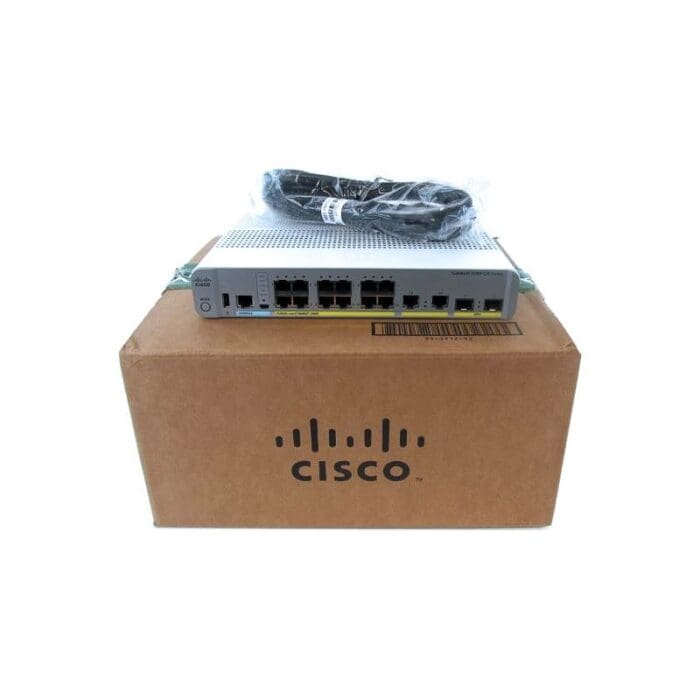

Quick Specs Figure 1 shows the appearance of WS-C3560CX-12PD-S.

Table 1 shows the Quick Specs.

Ethernet Ports 12 x 10/100/1000 Gigabit Ethernet
PoEOutput Ports 12 PoE+
AvailablePoE Power 240W
Uplinks 2 x 1G copper plus2 x 10G SFP+
Default Software IP Base (IP Services with RTU License)
Powering Option Internal power supply
Available PoE Power (W) 240W
Can Switch Be Powered with Uplinks? No
Forwarding Bandwidth 34 Gbps
Switching Bandwidth (full-duplex capacity) 68 Gbps
Flash memory 128 MB
Memory DRAM 512 MB
Max VLANs 1023
VLAN IDs 4000
Maximum transmission unit (MTU) Up to 9000 bytes
Jumbo frames 9198 bytes
Forwarding rate 64 Byte Packet 50.6 mpps
Dimensions(H x W x D) 1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)
Weight 5.1 lb (2.31 Kg)
Operating* temperature up to 5000 ft (1524 m) -5°C to +45°C (+23°F to +113°F)
Operating* temperature up to 10,000 ft (3048 m) -5°C to +45°C (+23°F to +113°F)
Storage temperature up to 15,000 ft (4572 m) -25°C to +70°C (-13°F to +158°F)
Operating altitude Up to 3048 m (Up to 10,000 ft)
Storage altitude Up to 4000 m (Up to 15,000 ft)
Operating relative humidity 5% to 95% noncondensing
Storage relative humidity 5% to 95% noncondensing
MTBF 528,480
Management ●  BRIDGE-MIB●  CISCO-CABLE-DIAG-MIB●  CISCO-CDP-MIB●  CISCO-CLUSTER-MIB●  CISCO-CONFIG-COPY-MIB●  CISCO-CONFIG-MAN-MIB●  CISCO-DHCP-SNOOPING-MIB●  CISCO-ENTITY-VENDORTYPE-OID-MIB●  CISCO-ENVMON-MIB●  CISCO-ERR-DISABLE-MIB●  CISCO-FLASH-MIB●  CISCO-FTP-CLIENT-MIB●  CISCO-IGMP-FILTER-MIB●  CISCO-IMAGE-MIB●  CISCO-IP-STAT-MIB●  CISCO-LAG-MIB●  CISCO-MAC-NOTIFICATION-MIB●  CISCO-MEMORY-POOL-MIB●  CISCO-PAGP-MIB●  CISCO-PING-MIB●  CISCO-POE-EXTENSIONS-MIB●  CISCO-PORT-QOS-MIB●  CISCO-PORT-SECURITY-MIB●  CISCO-PORT-STORM-CONTROL-MIB●  CISCO-PRODUCTS-MIB●  CISCO-PROCESS-MIB●  CISCO-RTTMON-MIB●  CISCO-SMI-MIB●  CISCO-STP-EXTENSIONS-MIB●  CISCO-SYSLOG-MIB●  CISCO-TC-MIB●  CISCO-TCP-MIB●  CISCO-UDLDP-MIB●  CISCO-VLAN-IFTABLE●  RELATIONSHIP-MIB●  CISCO-VLAN-MEMBERSHIP-MIB●  CISCO-VTP-MIB●  ENTITY-MIB●  ETHERLIKE-MIB●  IEEE8021-PAE-MIB●  IEEE8023-LAG-MIB●  IF-MIB●  INET-ADDRESS-MIB●  OLD-CISCO-CHASSIS-MIB●  OLD-CISCO-FLASH-MIB●  OLD-CISCO-INTERFACES-MIB●  OLD-CISCO-IP-MIB●  OLD-CISCO-SYS-MIB●  OLD-CISCO-TCP-MIB●  OLD-CISCO-TS-MIB●  RFC1213-MIB●  RMON-MIB●  RMON2-MIB●  SNMP-FRAMEWORK-MIB●  SNMP-MPD-MIB●  SNMP-NOTIFICATION-MIB●  SNMP-TARGET-MIB●  SNMPv2-MIB●  TCP-MIB●  UDP-MIB●  ePM MIB
Standards ●  IEEE 802.1D Spanning Tree Protocol●  IEEE 802.1p CoS Prioritization●  IEEE 802.1Q VLAN●  IEEE 802.1s●  IEEE 802.1w●  IEEE 802.1x●  IEEE 802.1AB (LLDP)●  IEEE 802.3ad●  IEEE 802.3af●  IEEE 802.3ah(100BASE-X single/multimode fiber only)●  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports●  IEEE 802.3 10BASE-T specification●  IEEE 802.3u 100BASE-TX specification●  IEEE 802.3ab 1000BASE-T specification●  IEEE 802.3z 1000BASE-X specification●  100BASE-BX (SFP)●  100BASE-FX (SFP)●  100BASE-LX (SFP)●  1000BASE-BX (SFP)●  1000BASE-SX (SFP)●  1000BASE-LX/LH (SFP)●  1000BASE-ZX (SFP)●  1000BASE-CWDM SFP 1470 nm●  1000BASE-CWDM SFP 1490 nm●  1000BASE-CWDM SFP 1510 nm●  1000BASE-CWDM SFP 1530 nm●  1000BASE-CWDM SFP 1550 nm●  1000BASE-CWDM SFP 1570 nm●  1000BASE-CWDM SFP 1590 nm●  1000BASE-CWDM SFP 1610 nm●  RMON I and II standards●  SNMPv1, SNMPv2c, and SNMPv3
RFC compliance ●  RFC 768: UDP●  RFC 783: TFTP●  RFC 791: IP●  RFC 792: ICMP●  RFC 793: TCP●  RFC 826: ARP●  RFC 854: Telnet●  RFC 951: Bootstrap Protocol●  RFC 1542: BOOTP Extensions●  RFC 959: FTP●  RFC 1058: RIP Routing●  RFC 1112: IP Multicast and IGMP●  RFC 1157: SNMPv1●  RFC 1166: IP Addresses●  RFC 1253: OSPF Routing●  RFC 1256: ICMP Router Discovery●  RFC 1305: NTP●  RFC 1492: TACACS+●  RFC 1493: Bridge MIB●  RFC 1542: Bootstrap Protocol●  RFC 1583: OSPFv2●  RFC 1643: Ethernet Interface MIB●  RFC 1723: RIPv2 Routing●  RFC 1757: RMON●  RFC 1812: IP Routing●  RFC 1901: SNMPv2C●  RFC 1902-1907: SNMPv2●  RFC 1981: MTU Path Discovery IPv6●  FRC 2068: HTTP●  RFC 2080: RIP for IPv6●  RFC 2131: DHCP●  RFC 2138: RADIUS●  RFC 2233: IF MIB●  RFC 2236: IP Multicast●  RFC 2328: OSPFv2●  RFC 2273-2275: SNMPv3●  RFC 2373: IPv6 Aggregatable Addrs●  RFC 2453: RIPv2 Routing●  RFC 2460: IPv6 protocol●  RFC 2461: IPv6 Neighbor Discovery●  RFC 2462: IPv6 Autoconfiguration●  RFC 2463: ICMP IPv6●  RFC 2474: DiffServ Precedence●  RFC 2597: Assured Forwarding●  RFC 2598: Expedited Forwarding●  RFC 2571: SNMP Management●  RFC 2740: OSPF for IPv6●  RFC 3046: DHCP Relay Agent Information Option●  RFC 3101, 1587: NSSAs●  RFC 3376: IGMPv3●  RFC 3580: 802.1x RADIUS
Safety standards ●  UL 60950-1●  CAN/CSA 22.2 No. 60950-1●  EN 60950-1●  IEC 60950-1●  CE Marking●  GB 4943●  IEC 60825
Electromagnetic emissions certifications ●  FCC Part 15, CFR 47, Class A, North America●  EN/IEC 61000-4-5●  EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union●  AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand●  VCCI Class A, V-3/2007.04, Japan●  KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea●  ANATEL, Brazil●  CCC, China●  GOST, Russia
Environmental Reduction of Hazardous Substances (ROHS) 6
Telco Common Language Equipment Identifier (CLEI) code
