WS-C3560CX-8PT-S
Model: WS-C3560CX-8PT-S – Cisco ONE Catalyst 3560-CX Series Platform
Details: Cisco Catalyst 3560-CX PD PSE 8 Port PoE, 1G Uplinks IP Base
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C3560CX-8PT-S Overview

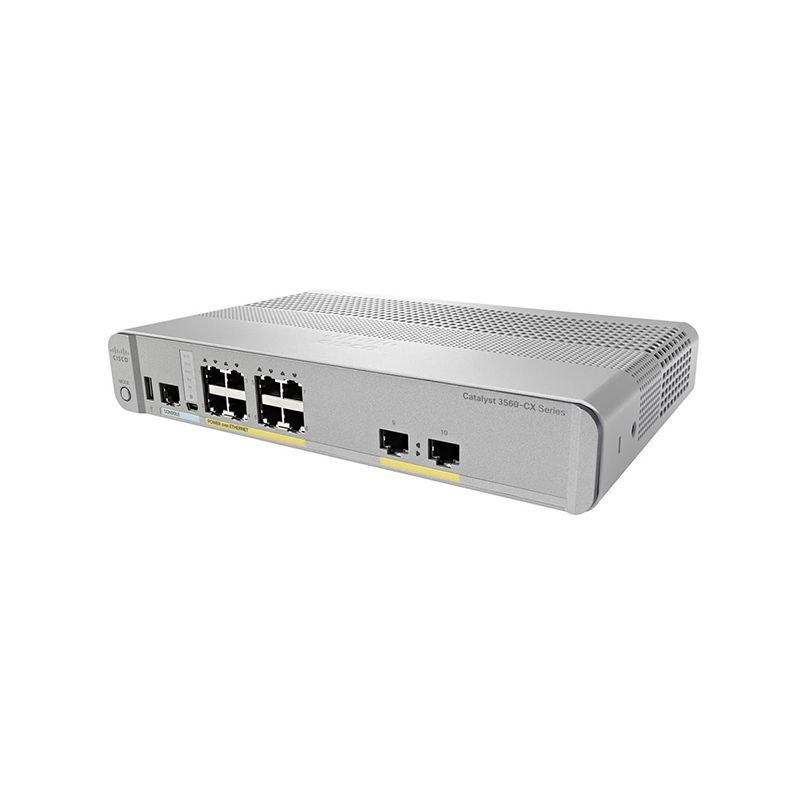

Quick Specs Figure 1 shows the appearance of WS-C3560CX-8PT-S.
Table 1 shows the Quick Specs.
| Type | Switch |
| Value | 14.9 Mpps |
| Width | 10.6 in |
| Depth | 7 in |
| Height | 1.7 in |
| Weight | 3.48 lbs |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Installed Size | 512 MB |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco Catalyst |
| Model | 3560CX-8PT-S |
| Brand | Cisco |
| Qty | 10 |
| Comments | PoE+ |
| Connector Type | Type A |
| Rack Mounting Kit | Optional |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 737,740 hours |
| Height (Rack Units) | 1 |
| Color Category | Gray |
| Power Consumption Operational | 24.3 Watt |
| Support Details Type | Technical support |
| Support Details Service Included | Consulting |
| Support Details Full Contract Period | 90 days |
| Response Time | Next business day |
| Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP |
| Status Indicators | Link/activity, PoE, Port transmission speed, Status, System |
| Ports Qty | 8 |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, BOOTP support, Class of Service (CoS), DHCP snooping, DHCP support, DiffServ support, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Fanless, Full duplex capability, IPv6 support, MAC Address Notification, Multicast VLAN Registration (MVR), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, VLAN support, Weighted Tail Drop (WTD) |
| Routing Protocol | RIP-1, RIP-2, Static IP routing |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | PoE+ |
| Manageable | Yes |
| Form Factor | Desktop, DIN rail mountable, Rack-mountable, Wall-mountable |
| Jumbo Frame Support | 9198 bytes |
| Subtype | 10 Gigabit Ethernet |
| PoE Budget | 146 W |
