WS-C3560X-48U-E (USED)
Model: Catalyst 3560X 48 Port UPOE IP Services
Details: Cisco Catalyst 3560-X Series Switches WS-C3560X-48U-E
Condition: Used
Warranty: 3 Years Warranty.
Description
WS-C3560X-48U-E (USED) Overview

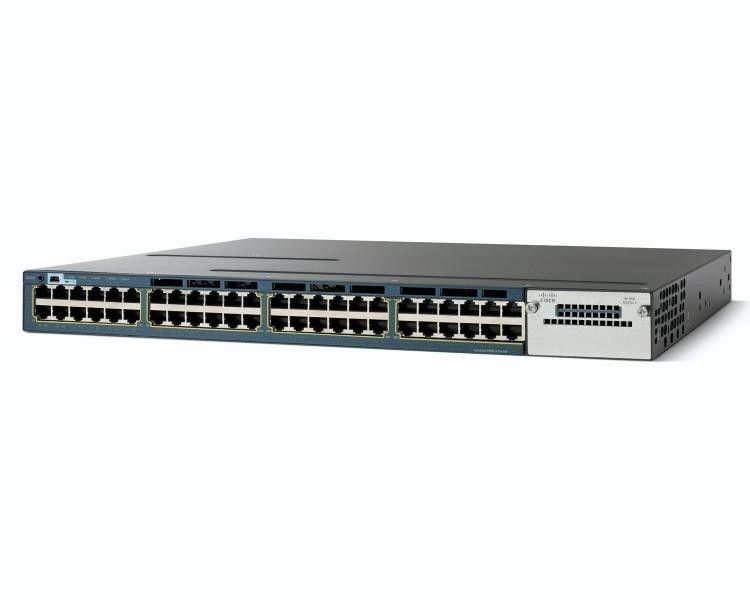

Quick Specs Figure 1 shows the appearance of WS-C3560X-48U-E (USED).
_1.png)
Table 1 shows the Quick Specs.
| Device Type | Switch – 48 ports – L3 – managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (UPOE) |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 800 W |
| Performance | Switching fabric bandwidth: 160 Gbps ¦ Forwarding performance: 101.2 Mpps |
| Capacity | Virtual interfaces (VLANs): 1005 ¦ Switched virtual interfaces (SVIs): 1000 |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Redundant Power System (RPS) connector |
| Compliant Standards | TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| RAM | 256 MB |
| Flash Memory | 128 MB |
| Status Indicators | Port status, port transmission speed, port duplex mode, power, system, link/activity |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 UPOE – 60 W ¦ 1 x USB Type A ¦ 1 x console – mini-USB Type B management ¦ 1 x RS-232 – RJ-45 management ¦ 1 x 10Base-T/100Base-TX – RJ-45 management |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Rack Mounting Kit | Optional |
| MTBF | 189,710 hours |
| Software Included | Cisco IOS IP Services |
| Width | 17.5 in |
| Depth | 19.5 in |
| Height | 1.8 in |
| Weight | 16.75 lbs |
| Service & Support | Limited warranty – lifetime ¦ Limited warranty – power supply and fans – 5 years ¦ New releases update – lifetime |
| Min Operating Temperature | 23 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
