WS-C3850-24XU-E
Model: WS-C3850-24XU-E Catalyst 3850 Switch
Details: Stackable 24 100M/1G/2.5G/5G/10G UPoE ports, 1 network module slot, 1100 W AC power supply 1RU
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C3850-24XU-E Overview

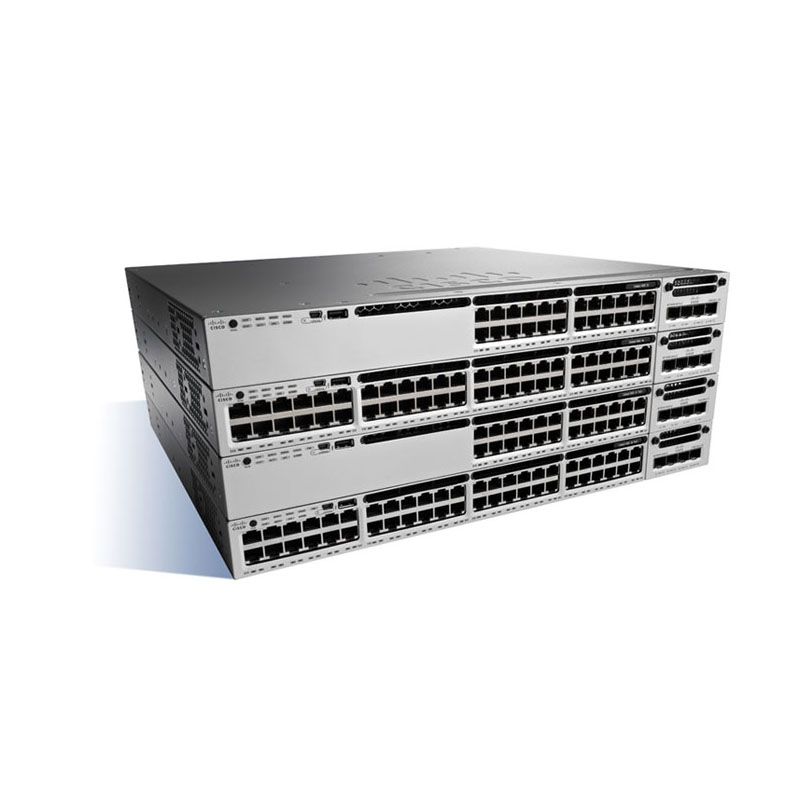

Quick Specs Figure 1 shows the appearance of WS-C3850-24XU-E.
Table 1 shows the Quick Specs.
| Type | Cisco IOS IP Services |
| Value | 92 Gbps |
| Width | 17.5 in |
| Depth | 19.2 in |
| Height | 1.8 in |
| Weight | 17.64 lbs |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 – 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Installed Size | 4 GB |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco Catalyst |
| Model | 3850-24XU-E |
| Brand | Cisco |
| Qty | 24 |
| Connector Type | Type B |
| Comments | Management |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 203,150 hours |
| Height (Rack Units) | 1 |
| Color Category | Gray |
| Connectivity Technology | Wired |
| Remote Management Protocol | CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Status Indicators | Active, PoE, Port duplex mode, Port transmission speed, Power, Status, System |
| Ports Qty | 24 |
| Features | 802.1x authentication, Access Control List (ACL) support, ARP inspection, ARP support, Bridge protocol data unit (BPDU), Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), DHCP snooping, DHCP support, Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), Multiple Spanning Tree Protocol (MSTP) support, PIM snooping, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Radio resource management (RRM), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), Virtual Routing and Forwarding (VRF), VLAN Trunking Protocol (VTP), Weighted Tail Drop (WTD) |
| Routing Protocol | BGP-4, EIGRP, EIGRP for IPv6, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng |
| MAC Address Table Size | 32000 entries |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | UPOE |
| Advanced Switching | Layer 3 |
| Manageable | Yes |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| Subtype | Gigabit Ethernet |
| PoE Budget | 580 W |
| Frequency Required | 50 – 60 Hz |
| Power Provided | 1100 Watt |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Support Details Type | Technical support |
| Support Details Service Included | Consulting |
| Support Details Full Contract Period | 90 days |
| Response Time | Next business day |
| Total Qty | 1 |
| Free Qty | 1 |
