WS-C3850-48W-S
Model: WS-C3850-48W-S Catalyst 3850 Switch
Details: Cisco Catalyst 3850 48-port PoE IP Base with 5-access point license
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C3850-48W-S Overview

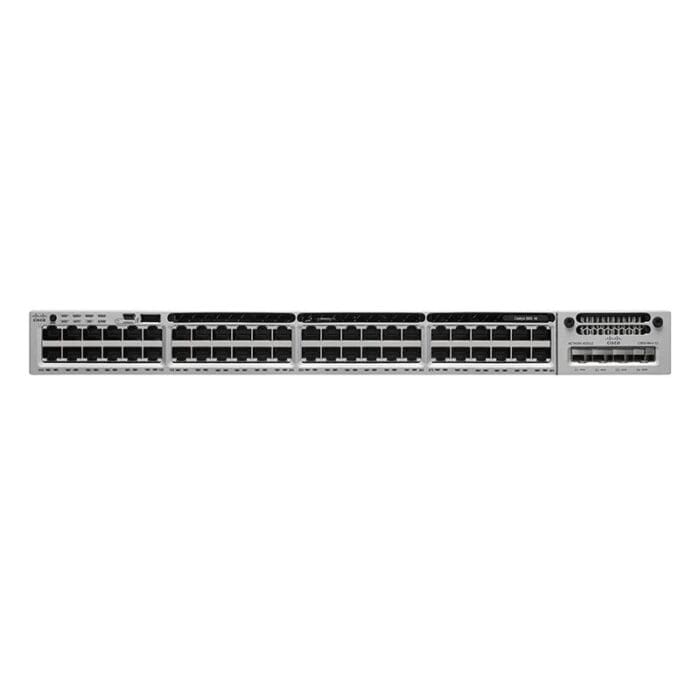

Quick Specs Figure 1 shows the appearance of WS-C3850-48W-S.
Table 1 shows the Quick Specs.
| Description | Cisco Catalyst 3850 48-port PoE IP Base with 5-access point license |
| Enclosure type | Rack-mountable – 1U |
| Ports | 48 Port PoE |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling● Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | 435W |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 20Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | C3850-NM-4-1GC3850-NM-2-10G |
| Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length●STACK-T1-1M StackWise stacking cable with a 1.0 m length●STACK-T1-3M StackWise stacking cable with a 3.0 m length |
| Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length●CAB-SPWR-150CM stack power cable with a 150CM length |
| Power supply | PWR-C1-715WAC |
| Power Device | Power supply – redundant – plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 84.97 (max) |
| Dimensions (H x W x D) | 1.75 x 17.5 x 17.7 inch; 4.45 x 44.5 x 45.0 cm |
| Rack Mounting Kit | optional |
| MTBF in hours | 269,450 |
| Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco● IEEE 802.1p CoS Prioritization● IEEE 802.1Q VLAN● IEEE 802.1s● IEEE 802.1w● IEEE 802.1X● IEEE 802.1X-Rev●IEEE 802.11● IEEE 802.1ab (LLDP)● IEEE 802.3ad● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports● IEEE 802.3 10BASE-T● IEEE 802.3u 100BASE-TX● IEEE 802.3ab 1000BASE-T● IEEE 802.3z 1000BASE-X● RMON I and II standards● SNMP v1, v2c, and v3 |
| System software | IOS IP Base |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Features | ●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trustand Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS PriorityQueues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoSand DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM,PIM sparse-dense mode, SSM ● Flexible Netflow |
| Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)● Bidirectional data support on a SPAN ● User authentication● Private VLAN ●Router and VLAN ACLs ● complete identity and security● Multidomain authentication ● MAC address notification● IGMP filtering ● Cisco security VLAN ACL● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs● Bridge protocol data unit (BPDU) Guard● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
| Management | ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB●CISCO-CIRCUIT-INTERFACE-MIB●CISCO-ENTITY-VENDORTYPE-OID-MIB●CISCO-CONTEXT-MAPPING-MIB●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB●CISCO-EIGRP-MIB●CISCO-EMBEDDED-EVENT-MGR-MIB●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB●CISCO-SMART-INSTALL-MIB●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB●LLDP-MIB ●NOTIFICATION-LOG-MIB●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB●POWER-ETHERNET-MIB ●RMON2-MIB●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB●CISCO-LWAPP-CLIENT-ROAMING-MIB●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
| Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
