WS-C4506E-S6L-2800
Model: WS-C4506E-S6L-2800 Cisco 4500 Switch
Details: 4506-E Chassis, TwoWS-X4648-RJ45V+E, Sup6L-E, 2800W PS
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C4506E-S6L-2800 Overview

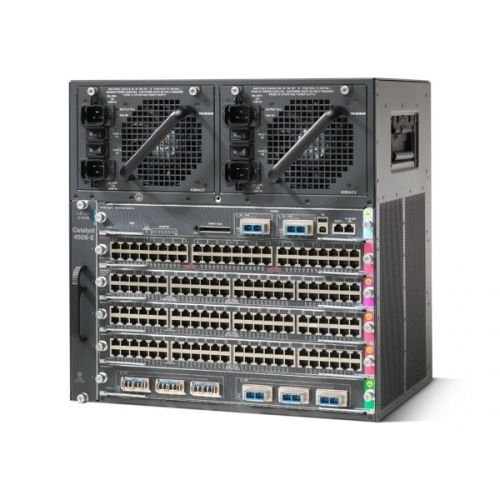

Quick Specs Figure 1 shows the appearance of WS-C4506E-S6L-2800.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | WS-C4506E-S6L-2800 |
| Chassis Type | 4506-E Chassis |
| Supervisor Engine | Sup6L-E |
| Power Supply | 2800W PS |
| Line Cards | Two WS-X4648-RJ45V+E |
| Number of Ports | 96 |
| Port Type | RJ45 |
| Port Speed | 10/100/1000 Mbps |
| VLANs Supported | 4096 |
| Forwarding Rate | 250 Mpps |
| Switching Capacity | 136 Gbps |
| Redundancy | Power Supply and Supervisor Engine Redundancy |
| Power Consumption | Maximum 2800W |
| Dimensions | 17.4 x 19.3 x 12.3 inches (HxDxW) |
| Rack Units | 6U |
| Operating Temperature | 32��F to 104��F (0��C to 40��C) |
| Storage Temperature | -40��F to 167��F (-40��C to 75��C) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| MTBF | 825,000 hours |
