WS-C4506E-S6L-4200
Model: WS-C4506E-S6L-4200 Cisco 4500 Switch
Details: 4506-E Chassis, Two WS-X4648-RJ45V+E, Sup6L-E, 4200W PS
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C4506E-S6L-4200 Overview

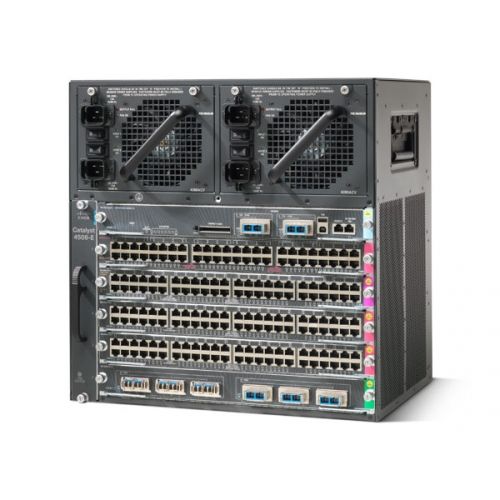

Quick Specs Figure 1 shows the appearance of WS-C4506E-S6L-4200.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | WS-C4506E-S6L-4200 |
| Chassis Type | 4506-E Chassis |
| Supervisor Engine | Sup6L-E |
| Power Supply | 4200W PS |
| Line Card | Two WS-X4648-RJ45V+E |
| Total Slots | 6 |
| Interface Ports | 48 ports per line card |
| Layer | Layer 2 and Layer 3 |
| VLAN IDs | Up to 4096 |
| Switch Fabric Capacity | 320 Gbps |
| Forwarding Bandwidth | 48 Gbps |
| Forwarding Rate | 250 mpps |
| Max Power Usage | 1200 W |
| Input Voltage | 100-240 VAC |
| Frequency | 50/60 Hz |
| Operating Temperature | 0 to 40��C |
| Storage Temperature | -20 to 70��C |
| Relative Humidity | 5% to 90% non-condensing |
| Dimensions (H x W x D) | 44.45 x 43.82 x 31.75 cm |
| EMI Standards | FCC Part 15 Class A |
| Safety Certifications | UL 60950-1, EN 60950-1 |
