-5%
WS-C4506E-S6L-96V+
Model: WS-C4506E-S6L-96V+ Cisco 4500 Switch
Details: 4506-E Chassis, TwoWS-X4648-RJ45V+E, Sup6L-E
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C4506E-S6L-96V+ Overview

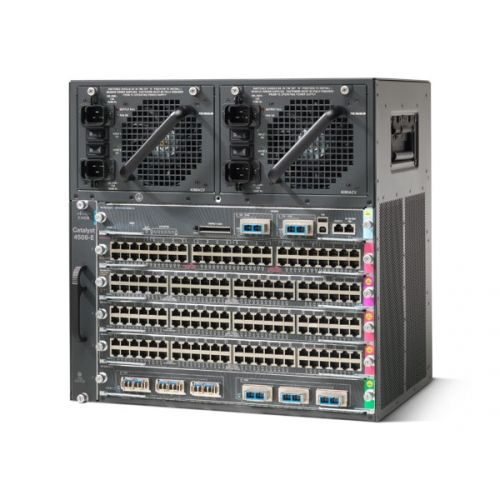

Quick Specs Figure 1 shows the appearance of WS-C4506E-S6L-96V+.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | WS-C4506E-S6L-96V+ |
| Chassis Type | 4506-E |
| Supervisor Engine | Sup6L-E |
| Number of Slots | 6 |
| Ethernet Ports | 2 x WS-X4648-RJ45V+ |
| Total Ports | 96 |
| Power Supply | Dual Power Supplies Supported |
| Redundancy | Yes (Supervisor Engine and Power Supply) |
| Management | CLI, SNMP, Web-based Management |
| Performance | 320 Gbps Switching Capacity |
| Forwarding Rate | 250 Mpps |
| VLAN Support | Yes |
| Layer Support | Layer 2 and Layer 3 |
| Quality of Service (QoS) | Yes |
| Dimensions | 17.4 x 17.3 x 12.25 inches |
| Operating Temperature | 32��F to 104��F (0��C to 40��C) |
| Storage Temperature | -40��F to 158��F (-40��C to 70��C) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Warranty | Limited Lifetime Warranty |
| MTBF (Mean Time Between Failures) | 250,000 hours |
