WS-C4507RES6L-96V+
Model: WS-C4507RES6L-96V+ Cisco 4500 Switch
Details: 4507-E Chassis, TwoWS-X4648-RJ45V+E, Sup6L-E
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-C4507RES6L-96V+ Overview

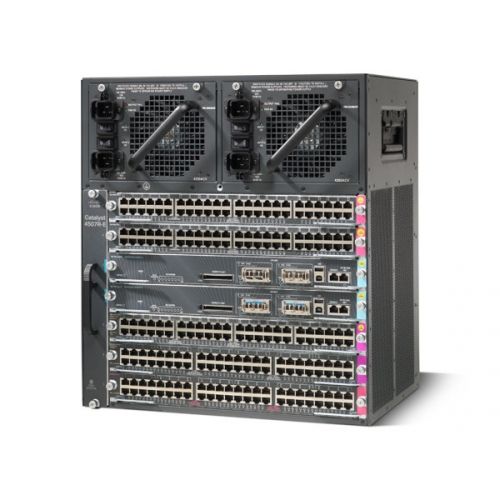

Quick Specs Figure 1 shows the appearance of WS-C4507RES6L-96V+.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | WS-C4507RES6L-96V+ |
| Chassis | 4507-E |
| Supervisor Engine | Sup6L-E |
| Line Cards | Two WS-X4648-RJ45V+E |
| Switching Capacity | 136 Gbps |
| Forwarding Rate | 102 mpps |
| Maximum Slots | 7 |
| Ethernet Ports | 96 x 10/100/1000 |
| Power Supply Redundancy | 1+1 |
| AC Input Voltage | 100 to 240 VAC |
| DC Input Voltage | -48 to -60 VDC |
| Operating Temperature | 0��C to 40��C |
| Storage Temperature | -40��C to 75��C |
| Operating Humidity | 10% to 95% (non-condensing) |
| Storage Humidity | 10% to 95% (non-condensing) |
| Airflow | Side-to-side |
| Rack Units | 10U |
| MTBF | 333,000 hours |
| Dimensions | 17.4 x 17.31 x 24.5 inches |
| Warranty | Limited Lifetime |
