WS-C6506-E-VPN+-K9 (USED)
Model: WS-C6506-E-VPN+-K9 Cisco 6500 Switch
Details: Cisco Catalyst switch 6506E IPSec VPN SPA Security System
Condition: Used
Warranty: 3 Years Warranty.
Description
WS-C6506-E-VPN+-K9 (USED) Overview

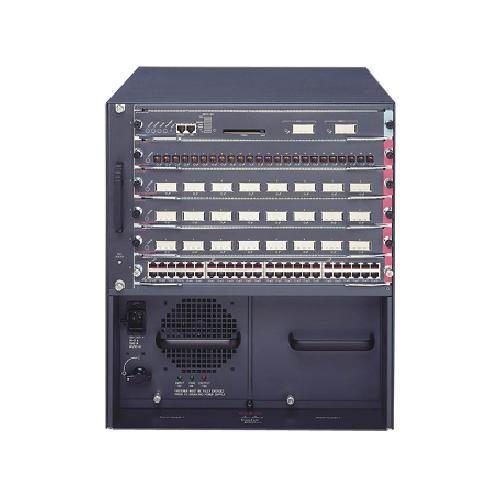

Quick Specs Figure 1 shows the appearance of WS-C6506-E-VPN+-K9 (USED).
_1.png)
Table 1 shows the Quick Specs.
| VPN Tunneling | IPsec (RFCs 2401-2411 and 2451) |
| Encryption | ● Encapsulating Security Payload (ESP)● DES● 3DES● AES 128, 192, 256 |
| Authentication | ● X.509 digital certificates (RSA signatures)● Encrypted Nonces (RSA encryption)● Preshared keys● Simple Certificate Enrollment Protocol (SCEP)● RADIUS (RFC 2138)● TACACS+ |
| Integrity | Hashed Message Authentication Code with MD5 (HMAC-MD5) and with Secure Hash Algorithm-1 (HMAC-SHA-1) (RFCs 2403 and 2404) |
| Key Management | Internet Key Exchange (IKE; RFCs 2407-2409)IKE-XAUTHIKE-CFG-MODE |
| CA/PKI Support | ● Entrust● VeriSign● Microsoft● Netscape● IPlanet● Baltimore Technologies |
| Resiliency and High Availability | ● HSRP + RRI● Intrachassis (blade-to-blade) IPsec stateful failover● Interchassis (box-to-box) active/standby IPsec stateless failover● DPD● Dynamic routing across IPsec (see “Routing Protocols” section of this table) |
| Supervisor Engines | Cisco Catalyst 6500 Series Supervisor Engine 32, 720 Series, or VSS_10G |
| Supported LAN Interfaces | ● Multiport Fast Ethernet● Multiport Fast Ethernet with inline power● Multiport Gigabit Ethernet● 10 Gigabit Ethernet |
| Supported WAN Interfaces | ● Gigabit Ethernet WAN and Enhanced Gigabit Ethernet WAN● Single- and dual-port T3/E3● Single- and dual-port High-Speed Serial Interface (HSSI)● Multiport T1/E1● Multichannel T1/T3/E3● OC-3 ATM single-mode (SM) and multimode (MM)● OC-3 packet over SONET/SDH (POS) SM and MM● OC-12 ATM SM and MM● OC-12 POS SM and MM● OC-48 POS SM● OC-48 POS-Dynamic Packet Transport (DPT) SM |
| Physical Dimensions | ● Length: 5.92 in. (15 cm)● Width: 6.75 in. (17.15 cm)● Height: 1.52 in. (3.9 cm) (double height) |
