WS-C6509-E-FWM-K9 (USED)
Model: WS-C6509-E-FWM-K9 Cisco 6500 Switch
Details: Cisco Catalyst switch 6509E Firewall Security System
Condition: Used
Warranty: 3 Years Warranty.
Description
WS-C6509-E-FWM-K9 (USED) Overview

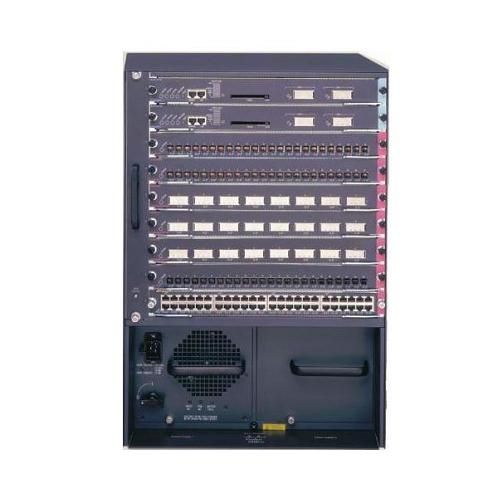

Quick Specs Figure 1 shows the appearance of WS-C6509-E-FWM-K9 (USED).
_1.png)
Table 1 shows the Quick Specs.
| Manufacturer | Cisco |
| Manufacturer Part # | WS-C6509-E-FWM-K9 |
| Device Type | Switch – L3 – Managed – with Cisco Supervisor Engine 720-3B, FWSM, Fan |
| Enclosure Type | Desktop – 15U |
| Interfaces | 1 x 1000Base-T – RJ-452 x SFP (mini-GBIC) |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, PIM-SM, static IP routing |
| Remote Management Protocol | Telnet, HTTP, HTTPS |
| Compliant Standards | NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548 |
| Dimensions (WxDxH) | 44.5 cm x 46 cm x 62.2 cm |
| Subtype | Gigabit Ethernet |
| Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | Firewall protection, Layer 3 switching, Layer 2 switching, NAT support, PAT support, MPLS support, VLAN support, Syslog support, traffic shaping, DoS attack prevention, IPv6 support, High Availability, firmware upgradable, Access Control List (ACL) support |
| Status Indicators | Port status, power, link OK, system, active |
| Expansion Slots | 9 (total) / 7 (free) x Expansion Slot2 CompactFlash Card – type II |
| Installed Modules Qty (Max) | 2 (installed) / 9 (max) |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 62.2 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 – 90% |
