WS-X4248-FE-SFP
Model: WS-X4248-FE-SFP Catalyst 4500 100 Base-X FE Linecard
Details: Catalyst 4500 48-Port 100BASE-X (SFPs Optional) Base-X FE Linecard
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-X4248-FE-SFP Overview

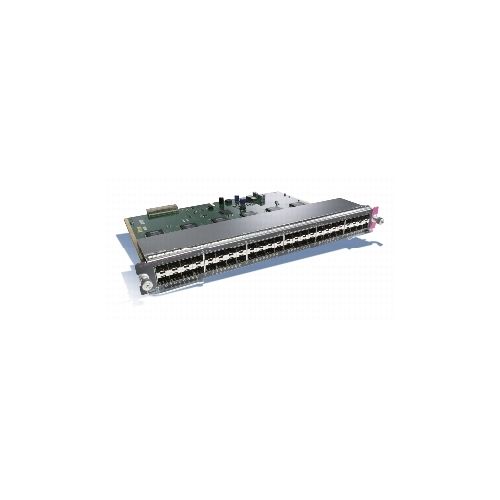

Quick Specs Figure 1 shows the appearance of WS-X4248-FE-SFP.
Table 1 shows the Quick Specs.
| Device Type | Switch – 48 ports |
| Enclosure Type | Plug-in module |
| Subtype | Fast Ethernet |
| Ports | 48 x 100 Mbit SFP |
| Features | Flow control |
| Compliant Standards | NEBS level 3, CISPR 22 Class A, EN 60950, IEC950, UL 1950, CSA 22.2 No. 950, EN55022 Class A, AS/NZS 3548, RoHS, EN55024 Class A, EN 50121-4, GR-1089-CORE, VCCI Class A, GR-63-CORE |
| Interfaces | 48 x SFP |
| MTBF | 687,828 hours |
| Width | 14.3 in |
| Depth | 10.7 in |
| Height | 1.2 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 167 °F |
| Designed For | Cisco Catalyst 4503, 4504, 4506, 4507R, 4510R |
