WS-X45-SUP6-E (USED)
Model: WS-X45-SUP6-E Catalyst 4500 E-Series Supervisor Engine
Details: Catalyst 4500 E-Series Supervisor Engine 6-E, 2x10GE(X2) w/ Twin Gig
Condition: Used
Warranty: 3 Years Warranty.
Description
WS-X45-SUP6-E (USED) Overview

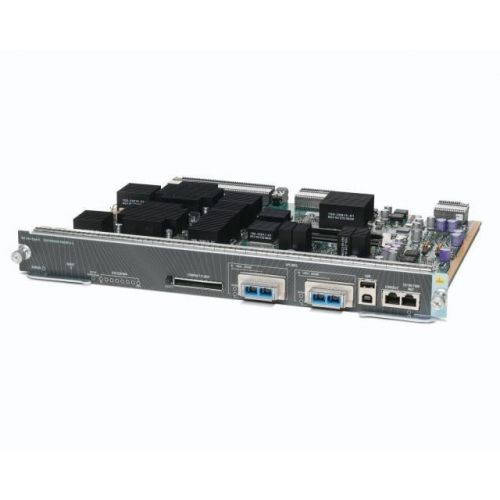

Quick Specs Figure 1 shows the appearance of WS-X45-SUP6-E (USED).
_1.png)
Table 1 shows the Quick Specs.
| Centralized switching capacity | 320 Gbps |
| Per-slot switching capacity | 24 Gbps |
| Throughput | 250 Mpps for IPv4125 Mpps for IPv6250 Mpps for L2 Bridging |
| IPv4 Routing entries | 256,000 |
| IPv6 Routing entries | 128,000 |
| Multicast routes | 32,000 |
| CPU | 1.3 GHz |
| CPU queues | 64 |
| Synchronous Dynamic RAM (SDRAM) | 512 MB upgradable to 1 GB |
| Nonvolatile RAM (NVRAM) | No through Boot flash (64 MB) |
| Security and QoS hardware entries | 128,000 |
| Cisco Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) Snooping entries | 12,000 |
| MAC addresses | 55,000 |
| Active VLANs | 4096 |
| Spanning Tree Protocol instances | 10,000 |
| Switched virtual interfaces (SVIs) | 4096 |
| Switched Port Analyzer (SPAN) | Maximum of 8 sessions: ingress and or egress |
