WS-X4612-SFP-E
Model: WS-X4612-SFP-E Catalyst 4500 E-Series Line card
Details: Catalyst 4500 E-Series Line card 12-Port GE (SFP)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-X4612-SFP-E Overview

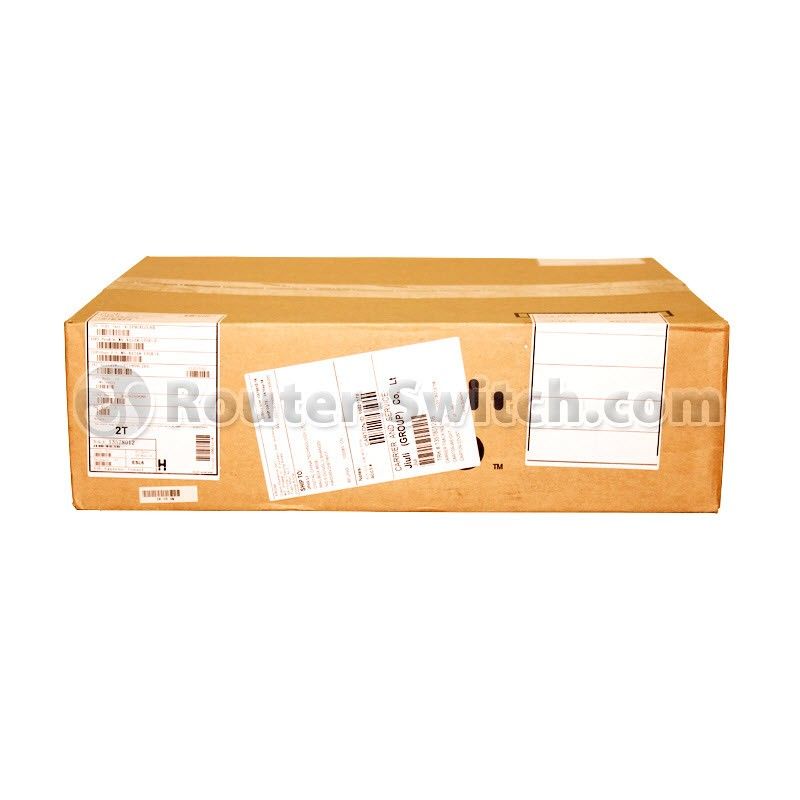

Quick Specs Figure 1 shows the appearance of WS-X4612-SFP-E.
Table 1 shows the Quick Specs.
| Type | E-Series Gigabit Ethernet SFP Line Cards |
| Number of Ports | 12 |
| Port Speed | 1000 |
| Port Type | Pluggables |
| Wire Rate | 1:1 |
| Standards | ● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM |
| EtherChannel Technology | ● Gigabit EtherChannel: All 1000 Mbps ports● 10 Gigabit EtherChannel: All 10Gbps ports● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports● Port Aggregation Protocol (PagP): Yes● Number of ports per tuple: 8● EtherChannel and IEEE 802.3ad technology across line cards: Yes |
| Physical Dimensions | ● Occupies one slot in the Cisco Catalyst 4500 Series platform● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm) |
| Environmental Conditions | ● Operating temperature: 32° to 104°F (0° to 40°C)● Storage temperature: -40° to 167°F (-40° to 75°C)● Relative humidity: 10 to 90%, noncondensing● Operating altitude: -60 to 3000m |
| Safety Conditions | Fiber optic lasers: Class 1 laser products |
| Safety Certifications | ● UL 1950● EN 60950● CSA-C22.2 no 950● IEC 950● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11 |
| Electromagnetic Emissions Certifications | ● FCC 15J Class A● VCCI Class A● CE Marking● EN 55022 Class A● EN 55024 Class A● CISPR 22 Class A● AS/NZ 3548● NEBS Level 3 (GR-1089-CORE, GR-63-CORE)● ETSI ETS-300386-2● EN 50121-4 |
| ROHS Compliance | ROHS5 |
| Max Rated Power (W) | 30 |
| Rated MTBF (Hours) | 676,740 |
