WS-X6904-40G-2T
Model: WS-X6904-40G-2T Cisco Catalyst 6500 Series Ethernet Module
Details: Cisco 6500 Module WS-X6904-40G-2T C6K 4 port 40 Gigabit Ethernet module with DFC4 (Trustsec) S
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
WS-X6904-40G-2T Overview

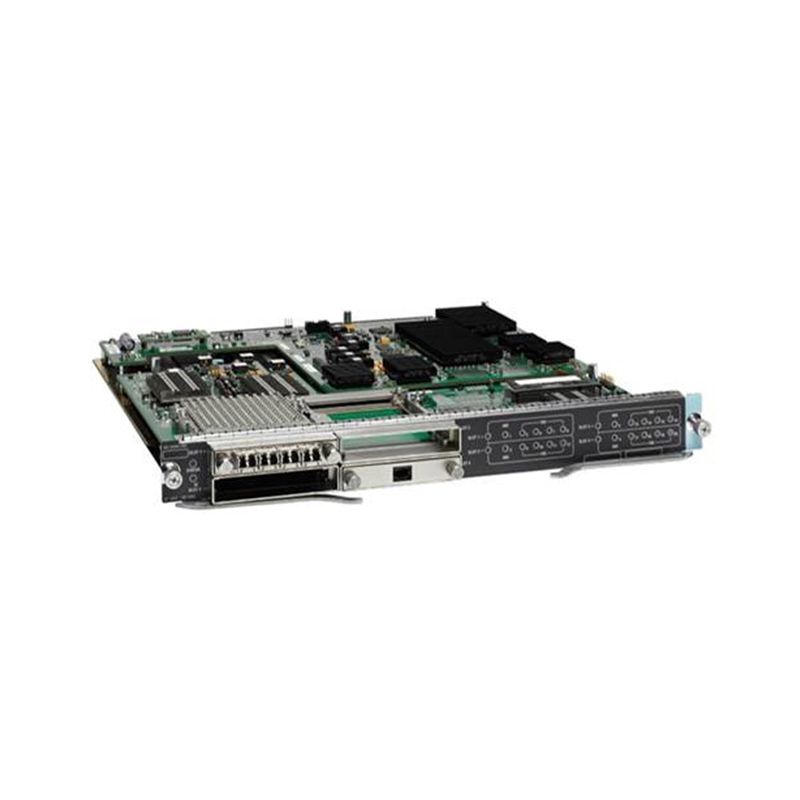

Quick Specs Figure 1 shows the appearance of WS-X6904-40G-2T.
Table 1 shows the Quick Specs.
| Product Description | Cisco Catalyst 6500 Series 10 Gigabit Ethernet interface module WS-X6904-40G-2T |
| Devide Tyde | 10 Gigabit Ethernet interface Fiber module |
| Ports | 4 * 40G Gigabit Ethenet or 16 * 10 Gigabit Ethernet |
| switch fabric connection | CFP-40G-LR4, 40G-CFP-SR4FourX converter for 10 Gigabit Ethernet SFP+ |
| Forwarding Engine | WS-F6K-DFC4-E |
| ACL entries | 64000 |
| Netflow entries | 512000 |
| Routing entries | 256000 |
| Bridge Domains | 16000 |
| MAC address | 128000 |
| Multicast routing | 256000 |
| IPv4 forwarding speed | 60 Mpps |
| Scheduler | ● Deficit Weighted Round Robin (DWRR)● Weighted Random Early Detection (WRED) |
| Virtual Switch Link (VSL) | Yes (all ports). Maximum of 4 x 40 G ports (refer to EtherChannel capacity section above) |
| Queuing Mechanisms | ● CoS-based queue mapping● DSCP-based queue mapping |
| Hardware-based Multicast replication | ● Ingress and egress● Approximately 20 GB per replication engine● Four replication engines per module delivering total throughput of 80 Gbps |
| Jumbo frame support for bridged and routed packets | Up to 9216 bytes |
| Supervisor engines supported | Cisco Catalyst 6500 Series Supervisor Engine VS-S2T-10G |
| Onboard memory | 2 GB default |
| Power requirement | 468 Watts |
