X2-10GB-LRM
Model: X2-10GB-LRM 10GBASE-LRM X2 Module
Details: 10GBASE-LRM X2 Module
Condition: Original New
Warranty: 3 Years Warranty.
Description
X2-10GB-LRM Overview

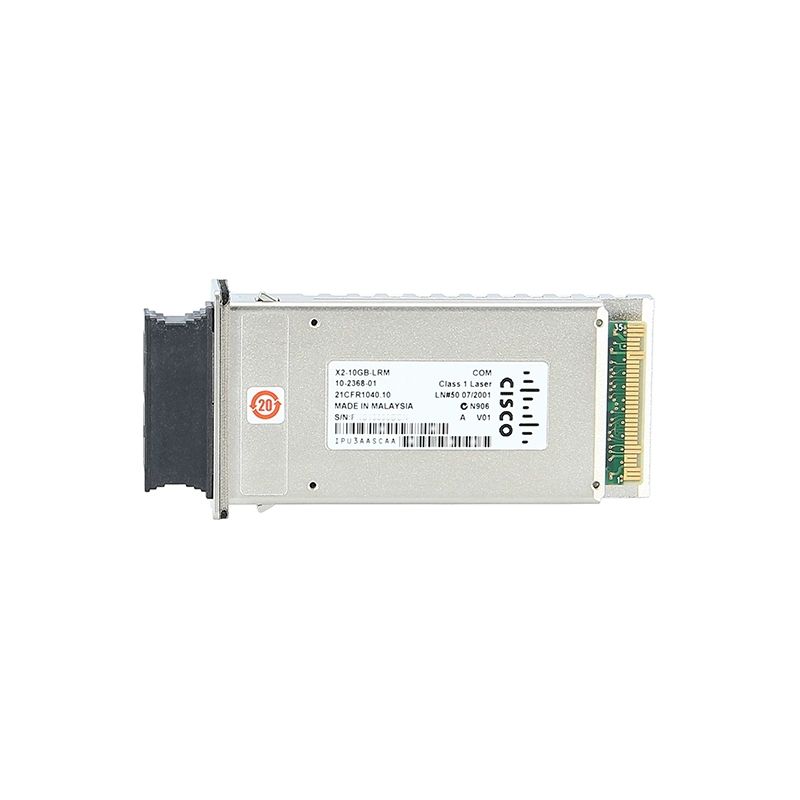

Quick Specs Figure 1 shows the appearance of X2-10GB-LRM.
Table 1 shows the Quick Specs.
| Device Type | X2 transceiver module |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LRM |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 722 ft |
| Compliant Standards | IEEE 802.3ae |
| Interfaces | 1 x Ethernet 10GBase-LRM – SC multi-mode x 2 |
| Compatible Slots | 1 x X2 |
| Width | 1.4 in |
| Depth | 3.6 in |
| Height | 0.5 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Designed For | Cisco Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD |
