X2-10GB-SR
Model: X2-10GB-SR 10GBASE-SR X2 Module
Details: 10GBASE-SR X2 Module
Condition: Original New
Warranty: 3 Years Warranty.
Description
X2-10GB-SR Overview

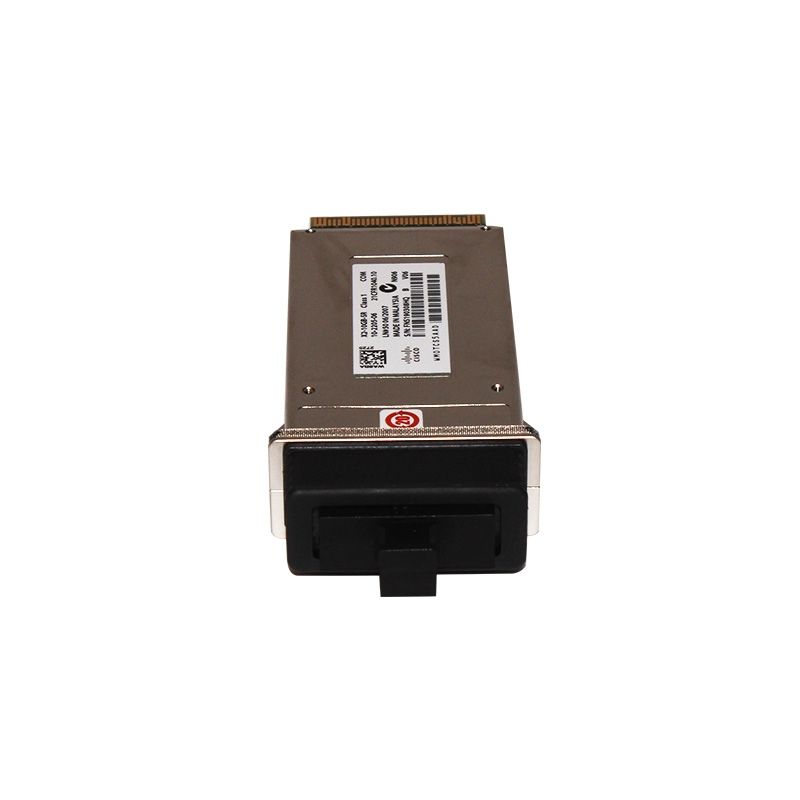

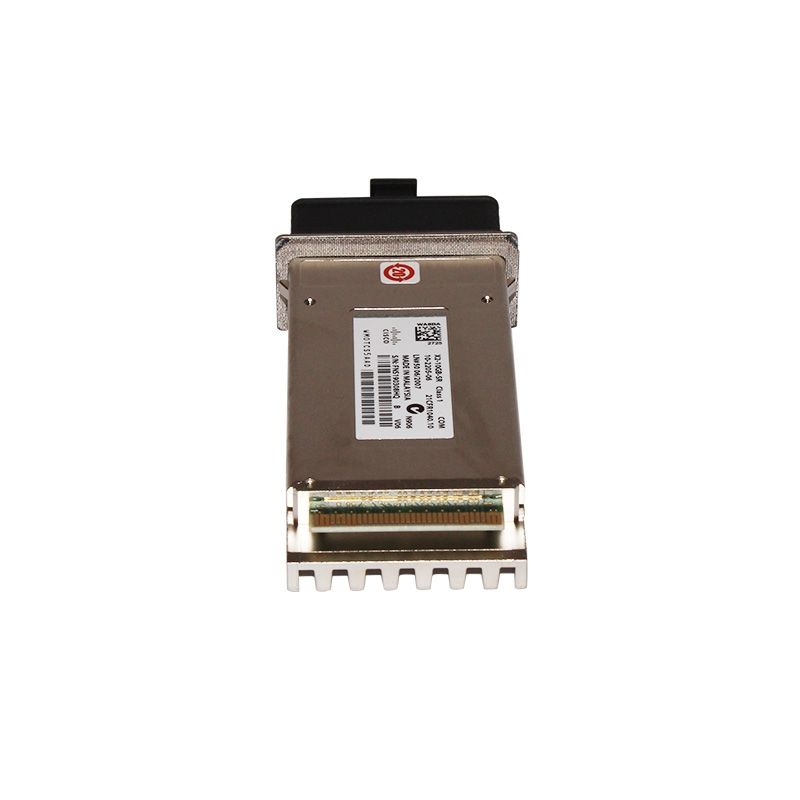

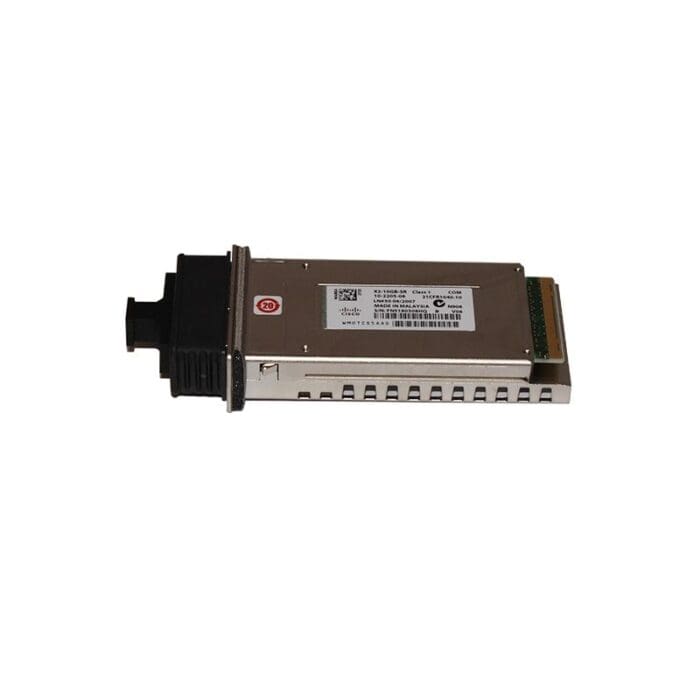

Quick Specs Figure 1 shows the appearance of X2-10GB-SR.
Table 1 shows the Quick Specs.
| Device Type | X2 transceiver module |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Compliant Standards | IEEE 802.3ae |
| Interfaces | 1 x Ethernet 10GBase-LR – SC multi-mode x 2 |
| Compatible Slots | 1 x X2 |
| Width | 1.4 in |
| Depth | 3.6 in |
| Height | 0.5 in |
| Service & Support | Limited warranty – 90 days |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Designed For | Cisco 8-Port 10 Gigabit Ethernet Module with DFC3C, 8-Port 10 Gigabit Ethernet Module with DFC3CXL ¦ Cisco Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD, 3750E-24PD, 3750E-24TD, 3750E-48PD, 3750E-48PD-F, 3750E-48TD, 4500 Series Supervisor Engine V-10GE, 4948 10 Gigabit Ethernet Switch ¦ Cisco ME 4924-10GE ¦ Cisco Supervisor Engine II-Plus-10GE |
