Sold out
X58A3S
Model: X58A3S – Dahua HDCVI DVR
Details: 4K 16+48CH 2U Penta-brid
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
X58A3S Overview

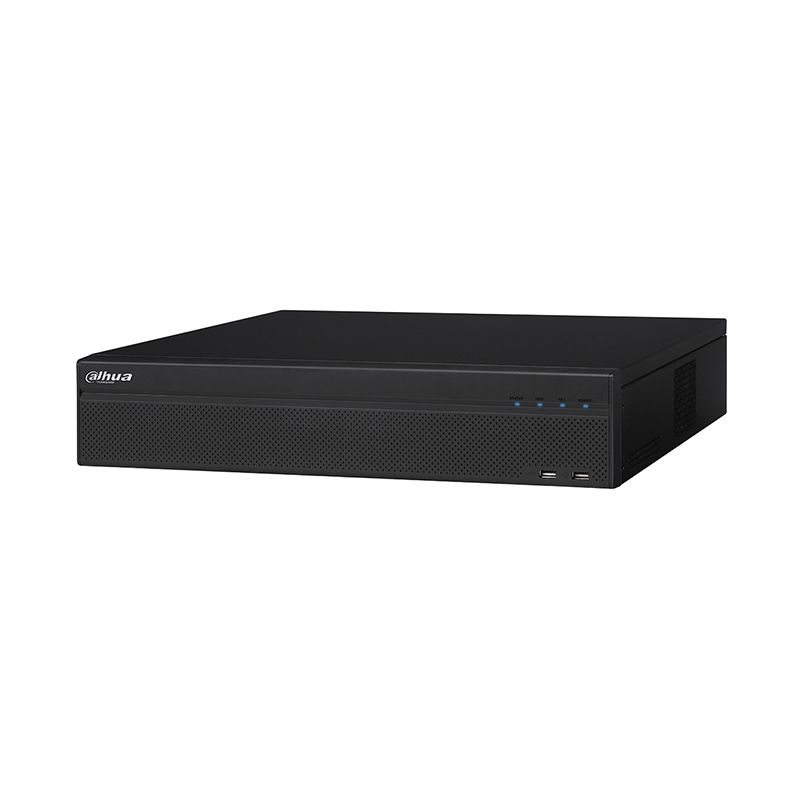

Quick Specs Figure 1 shows the appearance of X58A3S.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | X58A3S |
| Video System | PAL/NTSC |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analog Camera Input | 16 channels, BNC |
| IP Camera Input | 48+16 channels, up to 12MP resolution |
| Audio Input | 1 channel, RCA |
| Video Outputs | HDMI, VGA |
| Audio Output | 1 channel, RCA |
| Internal HDD | 8 SATA ports, up to 8TB capacity for each HDD |
| eSATA | 1 port |
| USB Ports | 1 USB 2.0 port, 1 USB 3.0 port |
| Ethernet | 2 RJ-45 ports (10/100/1000Mbps) |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTP, RTSP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P |
| Power Supply | AC100V-240V, 50/60Hz |
| Power Consumption | <15W (without HDD) |
| Operating Temperature | -10��C~+55��C (+14��F~+131��F) |
| Storage Temperature | -20��C~+70��C (-4��F~+158��F) |
| Humidity | 0%~90% RH |
| Dimensions (W x D x H) | 440mm x 455mm x 94.9mm (17.32″ x 17.91″ x 3.74″) |
| Chassis | 2U, rack-mounted |
