Xiaomi MI AX3600 WiFi 6 Router
Model: Xiaomi Mi AX3600 WiFi 6 Router – Xiaomi Routers
Details: Xiaomi Mi AX3600 Router AIoT Wifi 6, 6 core processor, 2.4GHz+5GHz.3000M wireless rate
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Xiaomi MI AX3600 WiFi 6 Router Overview

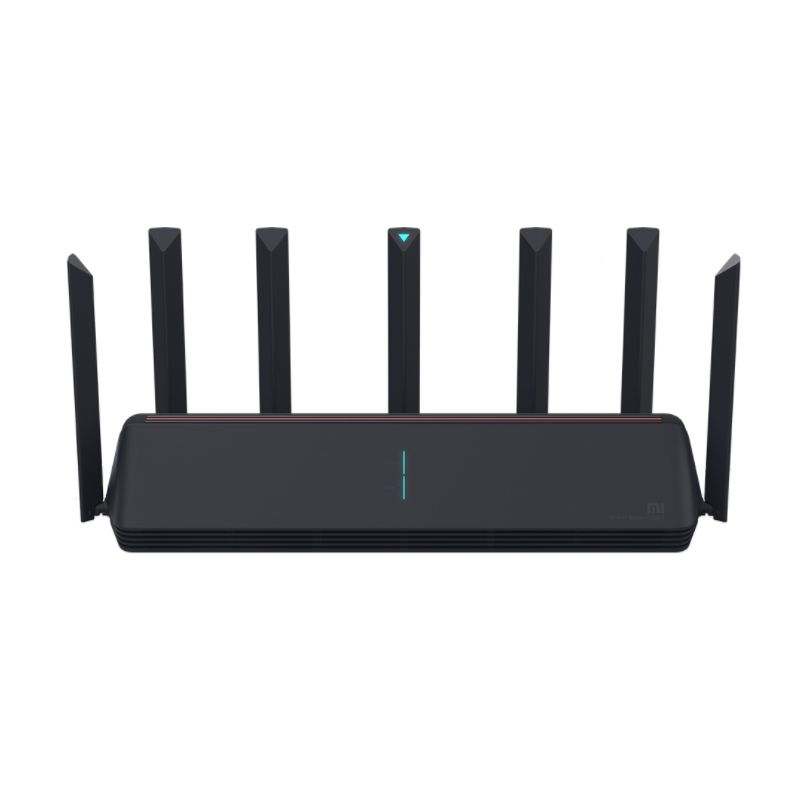

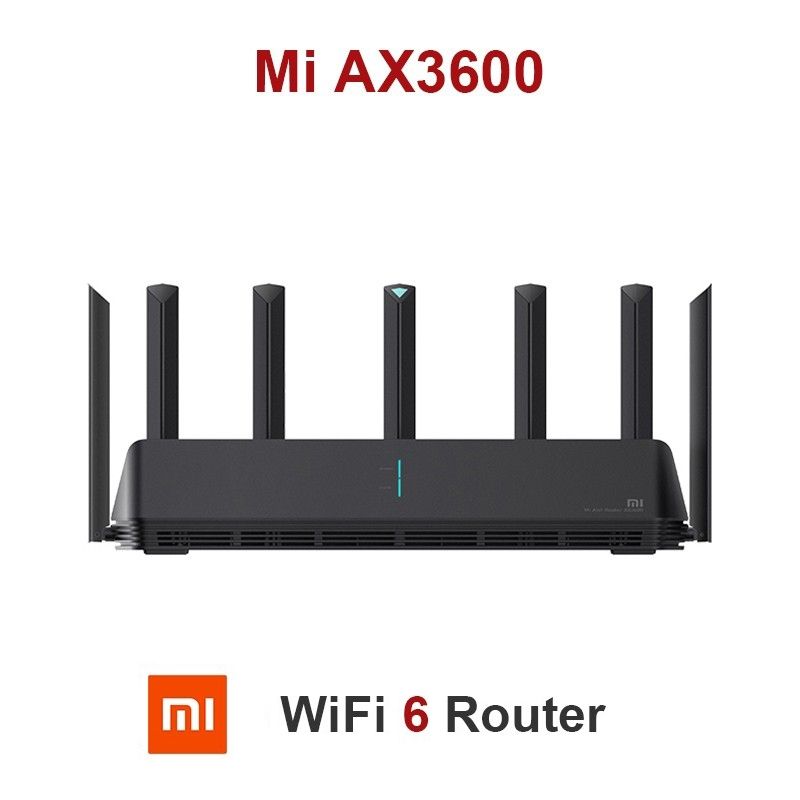

Quick Specs Figure 1 shows the appearance of Xiaomi MI AX3600 WiFi 6 Router.
Table 1 shows the Quick Specs.
| LxWxH (per unit) | 408 mm x 133 mm x 177 mm |
| Product color | Black |
| Processor | IPQ8071A 4-core A53 1.4 GHz CPU |
| Network processing unit | Dual-core 1.7 GHz NPU |
| ROM | 256MB |
| Memory | 512MB |
| 2.4G Wi-Fi | 2 x 2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 574 Mbps) |
| 5G Wi-Fi | 4 x 4 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 2402 Mbps) |
| Product antenna | 6 external high-gain antennas + 1 external AIoT antenna |
| Product heat dissipation | Natural heat dissipation |
| Total ports | 1 x 10/100/1000M self-adaptive WAN port (Auto MDI/MDIX)3 x 10/100/1000M self-adaptive LAN ports (Auto MDI/MDIX) |
| LED indicator light | 7 x (SYSTEM light x 1, INTERNET light x 1, LAN light x 4, AIoT status light x 1) |
| System reset button | 1x |
| Power input port | 1x |
| Protocol standards | IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab |
| Dual band | 2.4 GHz and 5 GHz |
| Modulation | 11b: DSSS: DBPSK(1 Mbps), DQPSK (2 Mbps), CCK(5.5/11 Mbps)11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)”11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS1511ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 4 streams)11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.Rate set: MCS0 to MCS11 (supports 4 streams)” |
| Operating system | Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT |
| WiFi Encryption | WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention |
| Network Security | Access control (blacklist, whitelist), guest network, DoS, SPI firewall, IP and MAC address binding, IP and MAC filtering |
| Management applications | Supports web, Android, iOS |
| User manual | 1x |
| Networking cable | 1x |
| Product power supply | 1x(112 V/2 A) |
| Working environment | Temperature: 0°C to 40°C |
| Operating humidity | 10%–90% RH (no condensation) |
| Storage temperature | -40°C to +70°C |
| Storage humidity | 5%–90% RH (no condensation) |
| Package contents | Main body x 1User Manual x 1Power cable x 1Networking cable x 1 |
