Xiaomi Mi AX9000 WiFi 6 Router
Model: Xiaomi Mi AX9000 WiFi 6 Router – Xiaomi WiFi Routers
Details: Xiaomi AX9000 Quad Core Gaming Wireless Router, support 5.8G 5.2G 2.4G WiFi 6.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Xiaomi Mi AX9000 WiFi 6 Router Overview

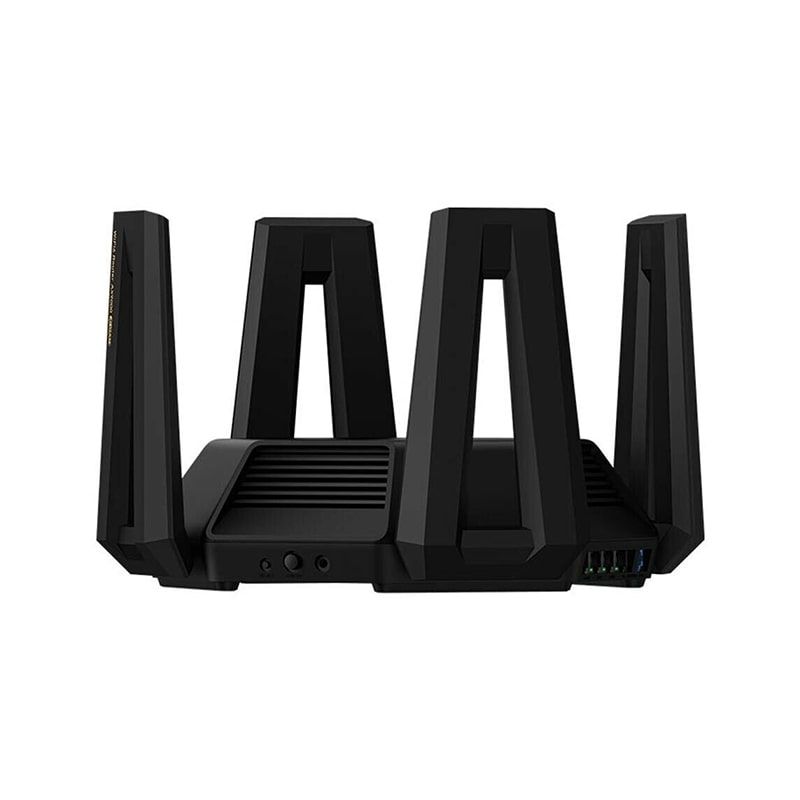

Quick Specs Figure 1 shows the appearance of Xiaomi Mi AX9000 WiFi 6 Router.
Table 1 shows the Quick Specs.
| CPU | Qualcomm IPQ8072 Quad-Core A53 2.2GHz CPU |
| Engine Acceleration Network | Dual-Core 1.7GHz NPU |
| RAM | 1GB |
| 2.4G Wi-Fi | 4×4 (IEEE802.11ax 1148Mbps) |
| 5.2G Wi-Fi | 4×4(IEEE802.11ax 4804Mbps) |
| 5.8G Wi-Fi | 4×4(IEEE802.11ax 2402Mbps) |
| Antenna | External High Gain Antenna + External AIOT Antenna |
| Heat Dissipation | Active Heat Dissipation |
| From The Physical Interface | 1* 10/100/1000 WAN/LAN (Auto MDI / MDIX)1* 10/100/1000 WAN/LAN (Auto MDI / MDIX)3* 10/100/1000LAN(Auto MDI / MDIX) |
| Led Indicator Light | 1 * System Indicators1 * INTERNET Indicators5 * Network Ports1 * Atmosphere Light |
| Reset Button | 1 * Reset Button |
| USB Port | 1 * USB 3.0 Port |
| Mesh Button | 1 * Mesh Button |
| Power Button | 1 * Power Button |
| Interface Power Input | 1 * Power Input Interface |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax,IEEE 802.3/3u/3ab |
| Certification Standards | GB/T9254-2008;GB4943.1-2011 |
| Three Channels | 2.4GHz,5.2GHz,5.8GHz |
| Wireless Channel | 2.4GHz Channel:1,2,3,4,5,6,7,8,9,10,11,12,135.2GHz Channel:36,40,44,48,52,56,60,645.8GHz Channel:149,153,157,161,165 |
| Modulation Mode | 11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)11a/g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),64QAM(48/54Mbps)11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.Rate Set: MCS0~MCS1511ac: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAMRate set:MCS9~ MCS0 (4 streams compatibles)11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.SIMSON11ax:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.Rate Set: MCS0~MCS11(support 4 streams).4096QAM.Rate Set: MCS12~MCS13(support 2 streams) |
| Operating System | MiWiFi ROM, an intelligent router operating system deeply customized based on OpenWRT |
| Wireless Security | WPA-PSK / WPA2-PSK / WPA3-SAE encryption, wireless access control (black and white list), hidden SSID |
| Management APP | Web,Android and iOS support website. |
| Work Environment | Operating Temperature: 0 ~ 40 ° CStorage Temperature: 10% ~ 90% RH Non-condensingOperating Humidity: -40 ~ 70 ℃Storage Humidity: 5% ~ 90% RH Non-condensing |
