XVR1A04
Model: XVR1A04 – Dahua HDCVI DVR
Details: Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
XVR1A04 Overview

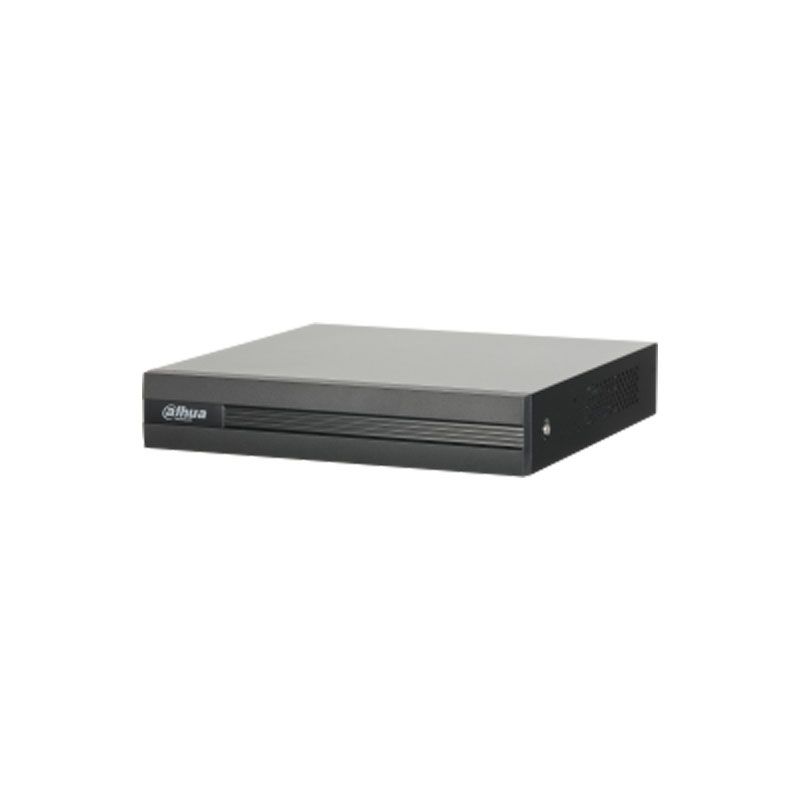

Quick Specs Figure 1 shows the appearance of XVR1A04.
Table 1 shows the Quick Specs.
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analog Camera Input | 4/8 Channel, BNC |
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps |
| AHD Camera | 1080P@25/30, 720P@25/30fps |
| TVI Camera | 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 4CH: 4+1, each channel up to 2MP8CH: 8+2, each channel up to 5MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Video Compression | H.264 |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Record Rate | Main Stream:4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)Sub steram:4CH: CIF/QCIF (1~15fps)8CH: CIF/QCIF (1~7fps) |
| Video Bit Rate | 32Kbps ~ 4096Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Interface | 1 RJ-45 Port (100M) |
| Multi-screen Display | When IP extension mode not enabled:4CH: 1/48CH: 1/4/8/9When IP extension mode enabled:4CH: 1/4/68CH: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback | 4CH: 1/48CH: 1/4/9 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Internal HDD | 1 SATA Port, up to 6TB capacity |
| eSATA | N/A |
| USB | 2 USB 2.0 |
| RS232 | N/A |
| RS485 | N/A |
| Power Supply | DC12V/1.5A |
| Power Consumption(Without HDD) | <10W |
| Dimensions | Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“) |
| Installation | Desktop installation |
| Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Certifications | FCC: Part 15 Subpart B |
