-5%
Zyxel 5G NR Mobile WiFi (NR2101)
Model: Zyxel 5G NR Mobile WiFi (NR2101) – Zyxel 5G Routers
Details: ZYXEL NR2101 5G MiFi, WiFi 6, 2.34Gbps download, 1x Gigabit LAN poort, 5300 mAh batter
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Zyxel 5G NR Mobile WiFi (NR2101) Overview

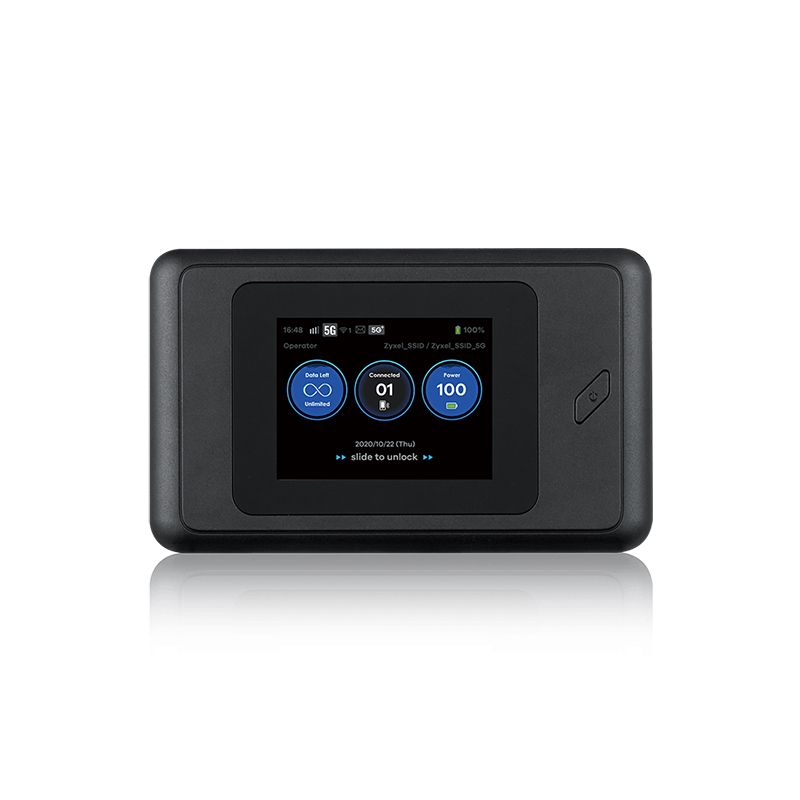

Quick Specs Figure 1 shows the appearance of Zyxel 5G NR Mobile WiFi (NR2101).
_1.png)
Table 1 shows the Quick Specs.
| IP networking | • Supports IPv4/IPv6 dual stack (NDP IPv6)• Supports DHCP server• Supports ICMP• Supports Virtual Private Network (VPN) pass-through• Supports NAT• Supports DMZ• Supports port forwarding |
| IP firewall | • Firewall can be enabled or disabled via GUI• Application-level firewall• Filters WLAN MAC addresses |
| Management | • Supports local device management and firmware upgrade via FOTA• Supports APN management• Supports PIN/PUK management |
| Wireless LAN standards | • 802.11 b/g/n/ax 2.4 GHz, data rates up to of 574 Mbps• 802.11 a/n/ac/ax 5 GHz, data rates up to of 1.2 Gbps |
| Wireless LAN AP features | • Wireless Protected Setup (WPS)• WPA-PSK, WPA2-PSK, WPA3/WPA2 mixed mode with TKIP & AES security type• Hidden SSID• Supports MU-MIMO• Connected users–max. 16 |
| 5G NR interface | • 3GPP Release 15 standard-compliant• Supports 5G NR NSA/SA mode• Supports frequencies: n1/n3/n7/n8/n20/n28/n41/n77/n78**• DL 4×4 MIMO: n1/n3/n7/n41/n77/n78• Supports 5G NR speed up to 4Gbps/660Mbps (DL/UL) data rate*• Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM• Supports UL modulation QPSK, 16-QAM and 64-QAM• Output power:- Class 3 (23 dBm) for bands: n1/n3/n7/n8/n20/n28/n41/n77/n78* |
| 4G LTE interface | • 3GPP UE Category 20 standard-compliant• Supports frequencies:- FDD bands: B1/B3/B7/B8/B20/B28**- TDD bands: B38**• DL MIMO:- FDD: B1/B3/B7- TDD: B38• Supports 4G LTE DL speeds of up to 2 Gbps• Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM• Supports UL modulation QPSK, 16-QAM and 64-QAM• Output power:- Class 3 (23 dBm) for FDD/TDD bands |
| Hardware interface | • One power on/off button• One 10/100/1000 Mbps Ethernet RJ-45 LAN port• One LED indicator:- Power status• One USB 3.1 gen 2 type C port (support Quick charging 2.0)• One reset to default button• One nano SIM card slot• 2.4”Color touchscreen:- Operator name- 5G/4G/3G network status- Data usage status- Signal strength- Battery status- WiFi status |
| Battery | • Removable lithium-ion polymer battery• 3.8 V, 5300 mAh• Up to 10 hours operating time (depends on network environment) |
| Physical specifications | • Item dimensions (WxDxH): 119 x 72 x 23.5 mm (4.69”x 2.84”x 0.93”)• Item weight: 235 g (0.52 lb.)• Packing dimensions (WxDxH): 165 x 115 x 46.5 mm (6.50”x 4.53”x 1.83”)• Packing weight: 476 g (1.05 lb.) |
| Operating environment | • Temperature: 0°C to 40°C (32°F to 104°F)• Humidity: 10% to 90% RH (non-condensing) |
| Storage environment | • Temperature: -30°C to 70°C (-22°F to 158°F)• Humidity: 10% to 90% (non-condensing) |
| Certification | • CE• GCF (Global Certification Forum) |
| Package contents | • Battery (5300 mAh)• AC charger• USB type C cable• Quick Start Guide• Warranty card• CE DoC |
