NVR4104HS-P-4KS2/L
NVR4104HS-P-4KS2/L Original price was: $101.15.Current price is: $96.09.

ZyXEL 5G Router NR5101

Original price was: $595.00.Current price is: $565.25.

Model: ZyXEL 5G Router NR5101 – Zyxel 5G Routers
Details: ZYXEL NR5101, FWA solutions for 4G & 5G mobile networks, Supports 5G Non-Standalone & Standalone mode
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

SKU: ZyXEL 5G Router NR5101 Categories: ,
Description

ZyXEL 5G Router NR5101 Overview

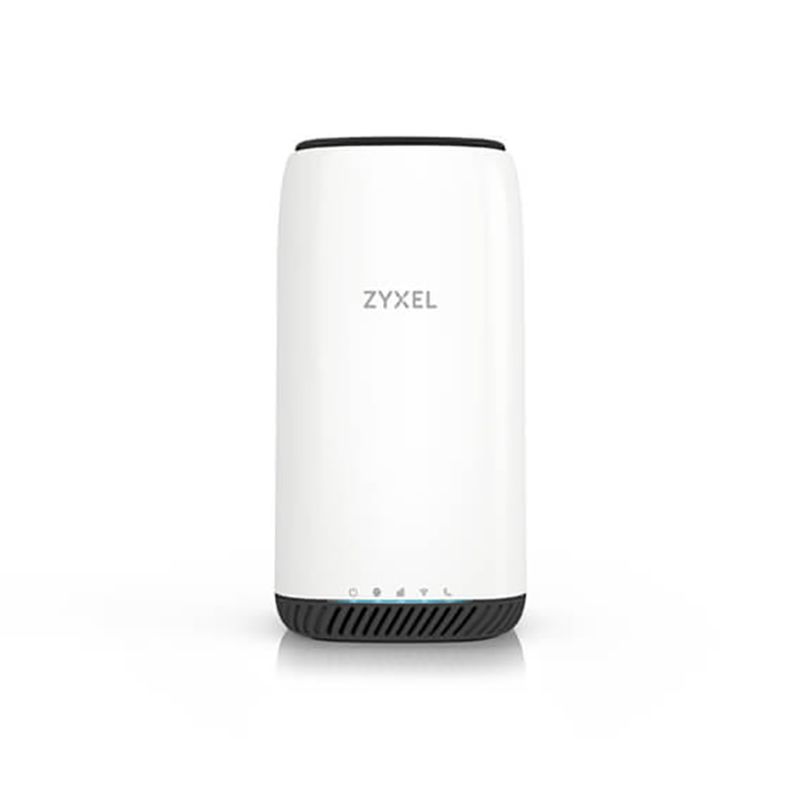

Quick Specs Figure 1 shows the appearance of ZyXEL 5G Router NR5101.

Table 1 shows the Quick Specs.

5G NR interface • 3GPP Release 15 standard-compliant• Supports both NSA and SA modes• Supports frequencies: n1/n3/n5/n7/n8/n20/n28/n41/n77/n78/n38/n40• DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78• Data rates:- 5G SA: DL 4.2 Gbps; UL 900 Mbps*- 5G NSA: DL 5 Gbps; UL 650 Mbps*• Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM• Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM• Output power:- Class 2 (26 dBm) for 5G NR n41/n77/n78- Class 3 (23 dBm) for 5G NR n1/n3/n5/n7/n8/n20/n28/n38/n40
4G LTE interface • 3GPP UE Category 20 standard-compliant• Supports frequencies:- LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32/B38/B39- LTE-TDD: B40/B41/B42• DL 4×4 MIMO:- LTE-FDD: B1/B3/B7- LTE-TDD: B38/B40/B41/B42• Peak data rates:- Max. DL 2 Gbps/UL 200 Mbps*• 4 internal antennas• Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM• Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM• Output power:- Class 2 (26 dBm) for LTE B38/B40/B41/B42- Class 3 (23 dBm) for FDD/TDD LTE bands
UMTS/EDGE/GPRS/GSM Air interface • Standard-compliant: DC-HSDPA/HSPA+ compliant• DC-HSDPA/HSPA+ standards-compliant• Supports frequencies: B1/3/5/8• Peak data rates:- DC-HSPA+ downlink data rates up to 42 Mbps*- HSUPA uplink data rates up to 5.76 Mbps*- UMTS data rates up to 384 Kbps*
WiFi Air Interface • Wireless standard: IEEE 802.11 b/g/n/a/ac/ax• Wireless speeds:- Link rates up to 573 Mbps* for 2.4 GHz- Link rates up to 1.2 Gbps* for 5 GHz• Internal WiFi antenna:Dual-band & concurrent 2×2 + 2×2• WiFi antenna gain:~3 dBi for 2.4 GHz~5 dBi for 5 GHz
5G/4G/3G antennas • 2 SMA connectors for external antennas• 6 embedded omni-directional antennas• Ultra-high band:- Up to 4 dBi peak gain• High band and middle band:- Up to 4 dBi peak gain• Low band:- Up to 2 dBi peak gain
Hardware interface • Two 10/100/1000 Mbps Ethernet RJ-45 LAN ports, LAN1 can be configured for Ethernet WAN port• LEDs:- Power indication- LTE connection status- LTE signal status- WiFi connection status- USB host status- LAN status• Two external antenna connectors (SMA type)• One 3FF/Micro SIM card slot• One power on/off button• One WPS/WiFi on/off button• One LED on/off button• One reset button• One USB 2.0 host port for file sharing
Power consumption 24 W (peak)
Physical Specifications • Item dimensions (WxDxH): 100 x 100 x 205 mm (3.94” x 3.94” x 8.07”)• Item weight: 600 g (1.32 lb.)• Packing dimensions (WxDxH): 247 x 170 x 120 mm (9.72” x 6.7” x 4.73”)• Packing weight: 1600 g (3.54 lb.)
Environmental Specifications Operating EnvironmentTemperature: 0°C to 40°C (32°F to 104°F)Humidity: 10% to 90% (Non-condensing)Storage EnvironmentTemperature: -30°C to 70°C (-22°F to 158°F)Humidity: 5% to 95% (non-condensing)
Certification • CE• WEEE (Waste Electrical and Electronic Equipment) Directive certification• RoHS (Restriction of Hazardous Substances) Directive certification• HSF (Hazardous Substance Free)• European Parliament and Council Directive 94/62/EC of 20 December 1994 on packaging and packaging waste
Package Contents Multiple-plug power adaptorEthernet cable 1.8 m 8P8CQuick Start GuideWarranty cardDoCSafety warranty
